Tetrakis(dimethylamido)zirconium(IV)

electronic grade, ≥99.99% trace metals basis

Synonym(s):

TDMAZ, Tetrakis(dimethylamino)zirconium(IV)

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

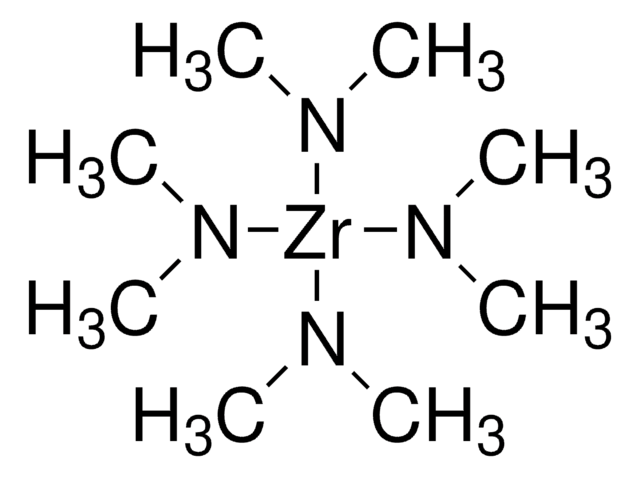

Linear Formula:
[(CH3)2N]4Zr
CAS Number:
Molecular Weight:
267.53
NACRES:
NA.23
PubChem Substance ID:
UNSPSC Code:
12352103
MDL number:
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist


grade

electronic grade

Quality Level

assay

≥99.99% trace metals basis

form

solid

reaction suitability

core: zirconium

mp

57-60 °C (lit.)

storage temp.

2-8°C

SMILES string

CN(C)[Zr](N(C)C)(N(C)C)N(C)C

InChI

1S/4C2H6N.Zr/c4*1-3-2;/h4*1-2H3;/q4*-1;+4

InChI key

DWCMDRNGBIZOQL-UHFFFAOYSA-N

Application

Tetrakis(dimethylamido) zirconium (IV) may be used as a precursor for atomic layer deposition of zirconium which find applications ranging from gas sensors to high-k dielectrics in microelectronics.


Still not finding the right product?


pictograms

FlameExclamation mark

signalword

Danger

target_organs

Respiratory system

supp_hazards

Storage Class

4.3 - Hazardous materials which set free flammable gases upon contact with water

wgk

WGK 3

flash_point_f

No data available

flash_point_c

No data available

ppe

Eyeshields, Gloves, type P3 (EN 143) respirator cartridges

Hazard Classifications

Eye Irrit. 2 - Flam. Sol. 1 - Skin Irrit. 2 - STOT SE 3 - Water-react. 2



Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library


Articles

Nanomaterials are considered a route to the innovations required for large-scale implementation of renewable energy technologies in society to make our life sustainable.

This article describes the use and advantages of polyoxometalate-based redox-flow batteries as electrochemical energy storage systems over Li-ion batteries.

Learn about the different low temperature direct alcohol fuel cells based on nanostructured material catalysts and anion exchange membrane fuel cells.

View All Articles

Surface morphology and crystallinity control in the atomic layer deposition (ALD) of hafnium and zirconium oxide thin films.
Hausmann DM & Gordon RG
Journal of Crystal Growth, 249.1, 251-261 (2003)
Atomic layer deposition of ZrO2 and HfO2 nanotubes by template replication
Gu D, et al.
Electrochemical and Solid-State Letters, 12.4, K25-K28 (2009)
