797316

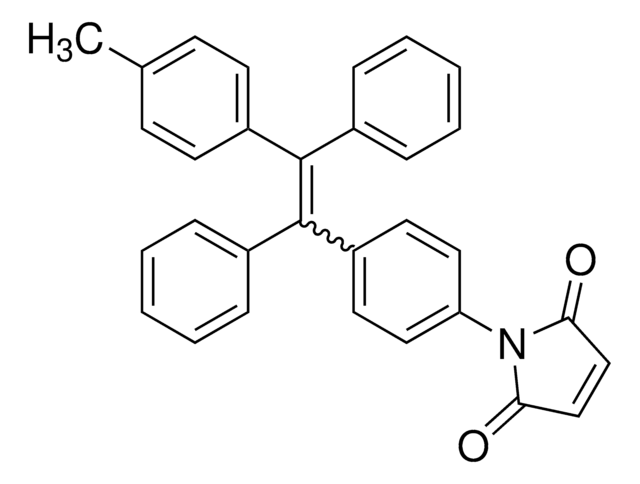

1-{4-[1,2-Diphenyl-2-(p-tolyl)vinyl]phenyl}-1H-pyrrole-2,5-dione

Name: 1-{4-[1,2-Diphenyl-2-(<I>p</I>-tolyl)vinyl]phenyl}-1<I>H</I>-pyrrole-2,5-dione
Brand: ALDRICH

Synonym(s):

TPE-Thiol

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):

C₃₁H₂₃NO₂

CAS Number:

1245606-71-6

Molecular Weight:

441.52

MDL number:

MFCD35099601

UNSPSC Code:

12352103

PubChem Substance ID:

329768584

NACRES:

NA.23

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

assay

98%

Quality Level

100

form

solid

SMILES string

CC(C=C1)=CC=C1/C(C2=CC=CC=C2)=C(C3=CC=CC=C3)/C4=CC=C(N5C(C=CC5=O)=O)C=C4

InChI

1S/C31H23NO2/c1-22-12-14-25(15-13-22)30(23-8-4-2-5-9-23)31(24-10-6-3-7-11-24)26-16-18-27(19-17-26)32-28(33)20-21-29(32)34/h2-21H,1H3/b31-30+

InChI key

CIMVFJJQFXGASK-NVQSTNCTSA-N

Description

General description

Aggregation-induced emission luminogens (AIEgen) were tailored to detect biological thiols. Maleimide is attached to the TPE core, giving TPE-Thiol.16. The reaction is inspired by the fast and efficient thiolene click reaction between maleimide and thiols, TPE-Thiol is not emissive in both solution and aggregated states, due to the photo-induced electron transfer from TPE to maleimide. However, reaction with thiol groups can interrupt the electron transfer process and turn-on the emission of TPE. TPE-Thiol can be used for labelling of protein carrying cysteine residues in the physiological media and poly(acrylamide) gel electrophoresis assays.

Application

TPE-Thiol is an aggregation-induced emission (AIE) material for the "Click" chemistry, with alkene and thio group detection.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

MKCD3669

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

AIE Luminogens: A Family of New Materials with Multifaceted Functionalities

AIE Luminogens - Family of new materials with multifaceted functionalities. Find some representative applications of the AIEgens

Aggregation-induced Emission Luminogens for Non-doped Organic Light-emitting Diodes

Organic Light-emitting Diodes (OLEDs) are solid-state devices that transform electrical energy into light. OLEDs are considered the next generation technology for high-resolution flexible displays and solid state lighting, attracting intense scientific and industrial interest.

Simple Biosensor with High Selectivity and Sensitivity: Thiol-Specific Biomolecular Probing and Intracellular Imaging by AIE Fluorogen on a TLC Plate through a Thiol?Ene Click Mechanism

Yang Liu, Yong Yu, Jacky W. Y. Lam, Yuning Hong, Mahtab Faisal, et al

Chemistry (Weinheim An Der Bergstrasse, Germany), 16(28), 8433-8438 (2010)

Global Trade Item Number

SKU	GTIN
797316-25MG	04061833243145
