684465

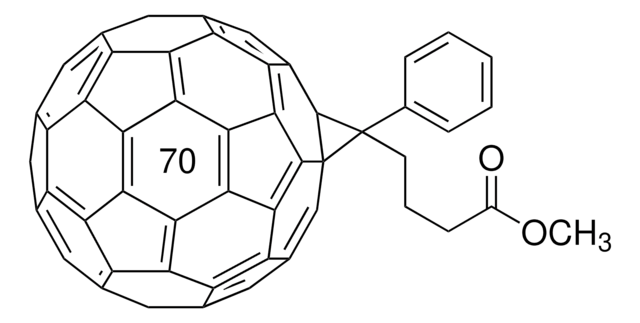

[6,6]-Phenyl C71 butyric acid methyl ester, mixture of isomers

99%

Synonym(s):

3′H-Cyclopropa[8,25] [5,6]fullerene-C70-D5h(6)-3′butanoic acid, 3′Phenyl-3′H-cyclopropa[8,25] [5,6]fullerene-C70-D5h(6)-3′butanoic acid, methyl ester, [70]PCBM

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C82H14O2
CAS Number:
609771-63-3
Molecular Weight:
1030.99
MDL number:
MFCD09842750
UNSPSC Code:
12352103
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

assay

99%

form

powder

solubility

chlorobenzene: soluble, organic solvents: soluble, toluene: soluble

orbital energy

HOMO 6 eV , LUMO 3.9 eV

semiconductor properties

N-type (mobility=0.1 cm2/V·s)

SMILES string

COC(=O)CCCC2(c1ccccc1)C34c5c6ccc7c8cc9Cc%10cc%11cc%12Cc%13cc%14c%15ccc6c3c%15c%16c%17c%18c%19c(c(c57)c8c%20c9c%10c%21c%11c%22c%12c%13c(c%14%16)c%18c%22c%21c%19%20)C24%17

General description

[6,6]-Phenyl C71 butyric acid methyl ester, mixture of isomers ([70]PCBM), is a high fullerene analog to [60]PCBM, which has an enhanced absorption of light in the visible region. It can be used in the development of electrochemical devices with a high current density.

Application

[70]PCBM and PCDTBT can be used as an acceptor and donor based fullerene derivative, which can be used in the fabrication of organic photovoltaics. It may be used with P3HT as an electron transporting material for the fabrication of solar cells with higher power efficiency.
[70]PCBM can be blended with a variety of electron donors, which include P3HT and MDMO-PPV, for the fabrication of polymeric solar cells with a high power conversion efficiency (PCE). It can also be used in the organic field effect transistor (OFET) based applications.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves
