443263

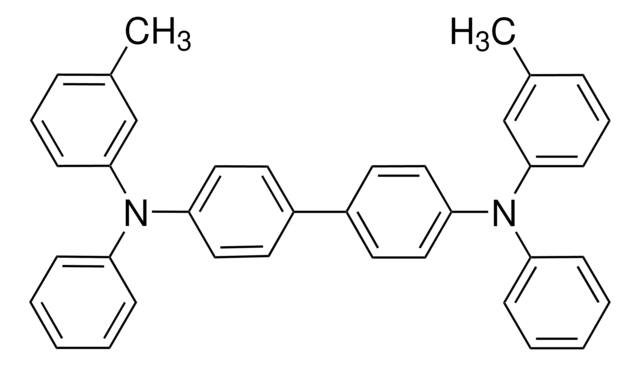

N,N′-Bis(3-methylphenyl)-N,N′-diphenylbenzidine

greener alternative

99%

Synonym(s):

TPD

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
[-C6H4-4-N(C6H4CH3)C6H5]2
CAS Number:
65181-78-4
Molecular Weight:
516.67
NACRES:
NA.23
PubChem Substance ID:
57650229
UNSPSC Code:
12352103
EC Number:
413-810-8
MDL number:
MFCD00144965
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Hole Transport Layer

Quality Level

100

assay

99%

form

powder

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

mp

175-177 °C (lit.)

orbital energy

HOMO 5.5 eV , LUMO 2.3 eV

OLED device performance

ITO/2-TNATA/TPD/Alq3/Mg:Ag

  • Color: green
  • Max. Luminance: 22200 Cd/m2
  • Turn-On Voltage: 5.5 V
, ITO/TPD/Alq3:DCM (10%)/Alq3/Mg:Ag
  • Color: red
  • Max. Luminance: 150 Cd/m2
, ITO/TPD/Znq/Mg:In
  • Color: yellow
  • Max. Luminance: 16200 Cd/m2
, ITO/m-MTDATA/TPD/TTPhPhB/Alq3/LiF/Al
  • Color: blue
  • Max. Luminance: 2600 Cd/m2
  • Max. EQE: 1.5 %
  • Turn-On Voltage: 3.4 V

greener alternative category

Enabling,

SMILES string

Cc1cccc(c1)N(c2ccccc2)c3ccc(cc3)-c4ccc(cc4)N(c5ccccc5)c6cccc(C)c6

InChI

1S/C38H32N2/c1-29-11-9-17-37(27-29)39(33-13-5-3-6-14-33)35-23-19-31(20-24-35)32-21-25-36(26-22-32)40(34-15-7-4-8-16-34)38-18-10-12-30(2)28-38/h3-28H,1-2H3

InChI key

OGGKVJMNFFSDEV-UHFFFAOYSA-N

General description

We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Hole transport organic materials allow perfect energy level alignment with the absorber layer and therefore efficient charge collection, are prone to degradation in ambient conditions.Click here for more information.

Application

Organic photoconductor. Hole transporter.

pictograms

Environment
GHS09

hcodes

H411

pcodes

P273

Hazard Classifications

Aquatic Chronic 2

Storage Class

11 - Combustible Solids

wgk

WGK 2

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves
