455059

Bisphenol A ethoxylate dimethacrylate

average Mn ~1,700, EO/phenol 15, contains 200 ppm MEHQ as inhibitor

Synonym(s):

2,2-Bis(4-methacryloxypolyethoxyphenyl)propane, Bisphenol A-ethylene oxide adduct dimethacrylate, Ethoxylated bisphenol A dimethacrylate

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:

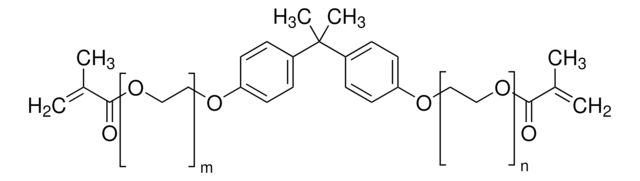

[H2C=C(CH3)CO2(CH2CH2O)nC6H4-4-]2C(CH3)2
CAS Number:
41637-38-1
NACRES:
NA.23
PubChem Substance ID:
24869017
UNSPSC Code:
12162002
MDL number:
MFCD03703564
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

mol wt

average Mn ~1,700

Quality Level

100

contains

200 ppm MEHQ as inhibitor, 200 ppm monomethyl ether hydroquinone as inhibitor

composition

EO/phenol, 15

refractive index

n20/D 1.493

density

1.12 g/mL at 25 °C (lit.)

storage temp.

2-8°C

SMILES string

OCCO.OC(=O)C=C.CC(C)(c1ccc(O)cc1)c2ccc(O)cc2

InChI

1S/C15H16O2.C3H4O2.C2H6O2/c1-15(2,11-3-7-13(16)8-4-11)12-5-9-14(17)10-6-12;1-2-3(4)5;3-1-2-4/h3-10,16-17H,1-2H3;2H,1H2,(H,4,5);3-4H,1-2H2

InChI key

HGARWRTUWINPJC-UHFFFAOYSA-N

General description

Bisphenol A ethoxylate dimethacrylate is an acrylic cross-linker widely used as a precursor to fabricate tissue-mimicking materials for 3D printing, cross-linked gel electrolytes, and to synthesize copolymers via the photopolymerization process.

Application

The Progress in Development of Dental Restorative Materials

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3

target_organs

Respiratory system

Storage Class

10 - Combustible liquids

wgk

WGK 3

flash_point_f

235.4 °F - closed cup

flash_point_c

113 °C - closed cup

ppe

Eyeshields, Faceshields, Gloves, type ABEK (EN14387) respirator filter

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCP5233
MKCN7328
MKCM9298
MKCL4321
MKCJ9122

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

The Progress in Development of Dental Restorative Materials

With dentists placing nearly 100 million dental fillings into patients′ teeth annually in the U.S. alone, polymeric composite restoratives account for a very large share of the biomaterials market.

3D printing of noncytotoxic high-resolution microchannels in Bisphenol-a ethoxylate dimethacrylate tissue-mimicking materials
Roger Domingo-Roca, et al.
3D printing and additive manufacturing (2022)
A study of cross-linked PEO gel polymer electrolytes using bisphenol A ethoxylate diacrylate: ionic conductivity and mechanical properties
Yongku Kang, et al.
Journal of Power Sources, 119-121, 432-437 (2003)
UV light copolymerization of dimethyl vinylphosphonate with bisphenol A ethoxylate dimethacrylate
Lavinia Macarie, et al.
Iranian Polymer Journal, 25, 437-442 (2016)
