541443

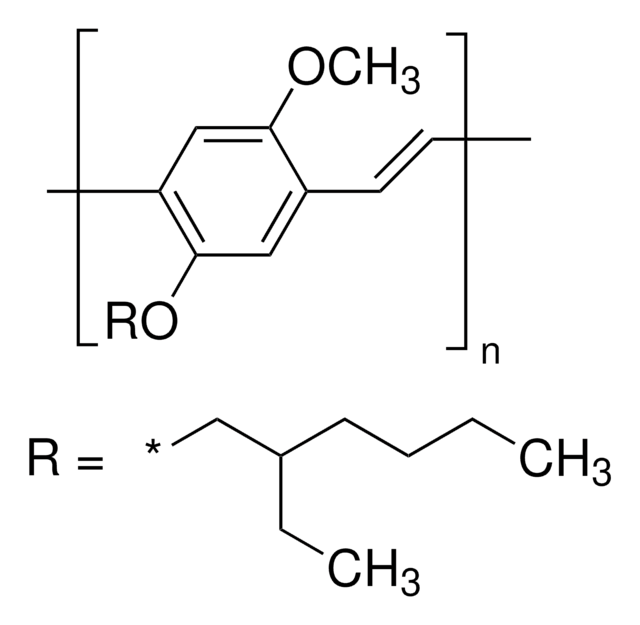

Poly[2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene]

average Mn 40,000-70,000

Synonym(s):

MEH-PPV

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
(C18H28O2)n
CAS Number:
138184-36-8
UNSPSC Code:
12352103
NACRES:
NA.23
MDL number:
MFCD03093943
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Band gap: 2.3 eV

Quality Level

100

mol wt

average Mn 40,000-70,000

fluorescence

λex 493 nm; λem 554 nm in toluene

orbital energy

HOMO -5.3 eV , LUMO -3 eV

OLED device performance

ITO/PEDOT:PSS/MEH-PPV/Al

  • Color: orange-red
  • Max. Luminance: 220 Cd/m2
  • Max. EQE: 0.3 %
  • Turn-On Voltage: 3.8 V
, ITO/PEDOT:PSS/MEH-PPV/PBO/Al
  • Color: orange-red
  • Max. Luminance: 970 Cd/m2
  • Max. EQE: 1.9 %
  • Turn-On Voltage: 2.9 V
, ITO/PEDOT:PSS/MEH-PPV/PBZT/Al
  • Color: orange-red
  • Max. Luminance: 1400 Cd/m2
  • Max. EQE: 2.5 %
  • Turn-On Voltage: 2.8 V

OPV device performance

ITO/MEH-PPV/BBL/Al

  • Short-circuit current density (Jsc): 1.98 mA/cm2
  • Open-circuit voltage (Voc): 0.93 V
  • Fill Factor (FF): 0.47
  • Power Conversion Efficiency (PCE): 1.1 %
, ITO/MEH-PPV:PC61BM(1:4)/Ca
  • Short-circuit current density (Jsc): 2 mA/cm2
  • Open-circuit voltage (Voc): 0.8 V
  • Fill Factor (FF): 0.25
  • Power Conversion Efficiency (PCE): 1.5 %

Mw/Mn

~6

storage temp.

2-8°C

SMILES string

O(CC(CCCC)CC)c1cc(c(cc1)OC)C=C

InChI

1S/C17H26O2/c1-5-8-9-14(6-2)13-19-16-10-11-17(18-4)15(7-3)12-16/h7,10-12,14H,3,5-6,8-9,13H2,1-2,4H3

InChI key

CTUSWJPWMNVXEE-UHFFFAOYSA-N

General description

MEH-PPV is a conducting organic semiconductor which has low molecular weight and hydrophobic characteristics. It is a poly(phenylenevinylene) (PPV) derivative and a conjugating polymer with highest occupied molecular orbital (HOMO) below the fermi level of gold.
Light-emitting conjugated polymer.

Application

MEH-PPV can form a nanocomposite with carbon nanotubes (CNTs) by spin coating that can be used for H2S gas sensors. It can also be used as a conducting polymer which results in the formation of a low-cost dopant free hole transporting material (HTM) for the fabrication of perovskite solar cells with a power efficiency of 9.65%. MEH-PPV can be blended with PCPDTBT for use as a sensitizer for dye sensitized photo sensors (DSPS).
Organic Semiconductor Laser Materials
Conducting polymer in solar cells and carbon nanotube OLEDs. Useful in producing bright and efficient white polymeric light emitting diodes.
Filter before application.

Still not finding the right product?

Explore all of our products under Poly[2-methoxy-5-(2-ethylhexyloxy)-1,4-phenylenevinylene]

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)
