745979

tBuBrettPhos Pd G3

96%, solid

Synonym(s):

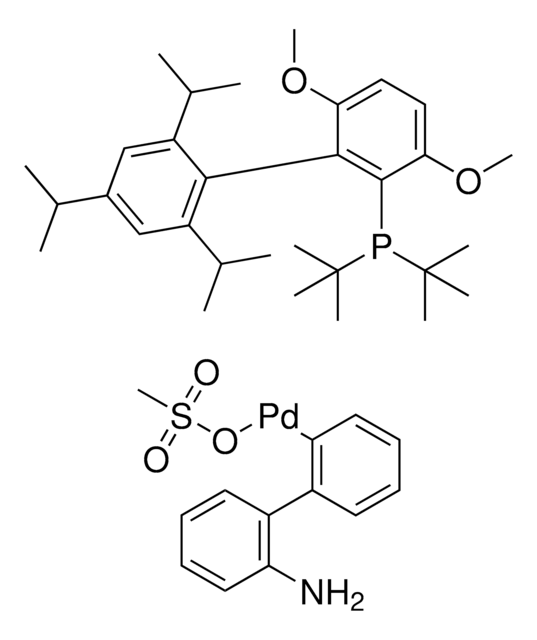

tert-BuBrettPhos-Pd-G3, [(2-Di-tert-butylphosphino-3,6-dimethoxy-2′,4′,6′-triisopropyl-1,1′-biphenyl)-2-(2′-amino-1,1′-biphenyl)]palladium(II) methanesulfonate

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C44H62NO5PPdS
CAS Number:
1536473-72-9
Molecular Weight:
854.43
UNSPSC Code:
12161600
PubChem Substance ID:
329765730
NACRES:
NA.22
MDL number:
MFCD25976528
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

tBuBrettPhos Pd G3, 96%

Quality Level

100

product line

Buchwald precatalyst Generation 3

assay

96%

form

solid

feature

generation 3

reaction suitability

core: palladium, reaction type: Buchwald-Hartwig Cross Coupling Reaction, reaction type: Heck Reaction, reaction type: Hiyama Coupling, reaction type: Negishi Coupling, reaction type: Sonogashira Coupling, reaction type: Stille Coupling, reaction type: Suzuki-Miyaura Coupling, reagent type: catalyst
reaction type: Cross Couplings

mp

119-131 °C

functional group

phosphine

SMILES string

COC1=CC=C(C(P(C(C)(C)C)C(C)(C)C)=C1C2=C(C=C(C=C2C(C)C)C(C)C)C(C)C)OC.NC3=C(C=CC=C3)C4=C(C=CC=C4)[Pd]OS(C)(=O)=O

InChI

1S/C31H49O2P.C12H10N.CH4O3S.Pd/c1-19(2)22-17-23(20(3)4)27(24(18-22)21(5)6)28-25(32-13)15-16-26(33-14)29(28)34(30(7,8)9)31(10,11)12;13-12-9-5-4-8-11(12)10-6-2-1-3-7-10;1-5(2,3)4;/h15-21H,1-14H3;1-6,8-9H,13H2;1H3,(H,2,3,4);/q;;;+1/p-1

InChI key

GAQPAUHHECNHNS-UHFFFAOYSA-M

General description

tBuBrettPhos Pd G3 is a third generation (G3) Buchwald precatalyst that can be used in cross-coupling reactions for the formation of C-C, C–N, C–O, C–F, C–CF3, and C–S bonds. It is air-, moisture-, and thermally-stable and is highly soluble in a wide range of common organic solvents. Some of its unique features include lower catalyst loadings, shorter reaction time, efficient formation of the active catalytic species and accurate control of ligand: palladium ratio.

Application

tBuBrettPhos Pd G3 has been used as a precatalyst for the N-arylation of amino acid esters with aryl triflates under mild reaction conditions and minimal racemization of the amino acid ester. It may also be used to catalyze the conversion of aryl halides to phenols in the presence of benzaldoxime as a hydroxide surrogate.

For small scale and high throughput uses, product is also available as ChemBeads (928313)

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SHBN5085
SHBM0165
SHBK8065
SHBL1146
SHBJ7055

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

G3和G4 Buchwald预催化剂

G3和G4 Buchwald预催化剂是一类最新的空气、湿度和热稳定型交叉偶联复合物，可用于键形成以实现其多功能性和高反应性。

G3 and G4 Buchwald Precatalysts

G3 and G4 Buchwald palladium precatalysts are the newest air, moisture, and thermally stable crossing-coupling complexes used in bond formation for their versatility and high reactivity.

Related Content

Buchwald and non-Buchwald catalysts and ligands for pharma or industrial chemistry applications

Explore reliable, premium grade catalysis materials for your pharma or industrial project. Specialty chemicals and formulations are available in bulk quantities and volumes from a few grams to multi-metric tons with complete documentation to simplify your leap from development to commercialization.

Hailey A Young et al.
The Journal of organic chemistry, 85(3), 1748-1755 (2019-12-04)
Palladium-catalyzed N-arylations of amino acid tert-butyl esters using 4-bromo-N,N-dimethylaniline as a coupling partner are reported. The resulting N-aryl amino acid esters are suitable building blocks for the synthesis of electron-rich N-aryl peptides, which undergo oxidative couplings to aminooxy groups to
Synthesis of Complex Phenols Enabled by a Rationally Designed Hydroxide Surrogate.
Fier PS & Maloney KM
Angewandte Chemie (International Edition in English), 56(16), 4478-4482 (2017)
Sandra M King et al.
Organic letters, 18(16), 4128-4131 (2016-08-09)
A general method for the N-arylation of amino acid esters with aryl triflates is described. Both α- and β-amino acid esters, including methyl, tert-butyl, and benzyl esters, are viable substrates. Reaction optimization was carried out by design of experiment (DOE)
