761605

BrettPhos Pd G3

Name: BrettPhos Pd G3
Brand: ALDRICH

98%, solid

Synonym(s):

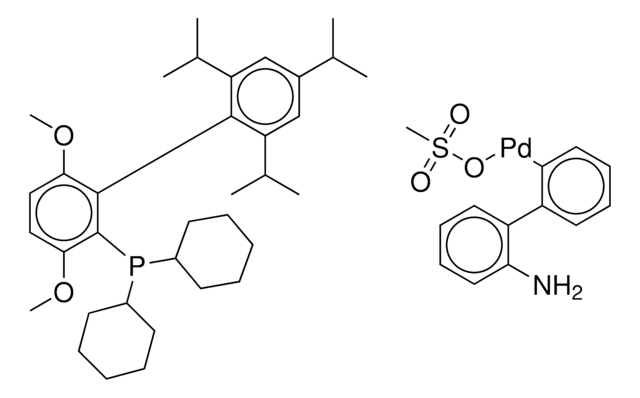

[(2-Di-cyclohexylphosphino-3,6-dimethoxy-2′,4′,6′- triisopropyl-1,1′-biphenyl)-2-(2′-amino-1,1′ -biphenyl)]palladium(II) methanesulfonate methanesulfonate

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):

C₄₈H₆₆NO₅PPdS

CAS Number:

1470372-59-8

Molecular Weight:

906.50

UNSPSC Code:

12352300

PubChem Substance ID:

329766562

NACRES:

NA.22

MDL number:

MFCD22572666

Assay:

98%

Form:

solid

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

Product Name

BrettPhos Pd G3, 98%

Quality Level

100

product line

Buchwald precatalyst Generation 3

assay

98%

form

solid

feature

generation 3

reaction suitability

reaction type: Buchwald-Hartwig Cross Coupling Reaction, reagent type: catalyst
core: palladium
reaction type: Cross Couplings

mp

150-193 °C (decomposition)

functional group

amine

SMILES string

CS(=O)(O[Pd]c1c(c2c(N)cccc2)cccc1)=O.COc3c(P(C4CCCCC4)C5CCCCC5)c(c6c(C(C)C)cc(C(C)C)cc6C(C)C)c(OC)cc3

InChI

1S/C35H53O2P.C12H10N.CH4O3S.Pd/c1-23(2)26-21-29(24(3)4)33(30(22-26)25(5)6)34-31(36-7)19-20-32(37-8)35(34)38(27-15-11-9-12-16-27)28-17-13-10-14-18-28;13-12-9-5-4-8-11(12)10-6-2-1-3-7-10;1-5(2,3)4;/h19-25,27-28H,9-18H2,1-8H3;1-6,8-9H,13H2;1H3,(H,2,3,4);/q;;;+1/p-1

InChI key

PQYBJDCHLVJYSD-UHFFFAOYSA-M

Description

General description

BrettPhos Pd G3 is a third generation (G3) Buchwald precatalyst. It is air, moisture and thermally-stable and is highly soluble in a wide range of common organic solvents. It has long life in solutions. BrettPhos Pd G3 is an excellent reagent for Buchwald-Hartwig cross-coupling reaction. Some of its unique features include lower catalyst loadings, shorter reaction time, efficient formation of the active catalytic species and accurate control of ligand: palladium ratio.

Application

BrettPhos Pd G3 may be used for the C-N coupling reaction between monosubstituted ureas and 1,2 dihaloaromatic system to form benzimidazolones.
It may be used in the synthesis of following compounds:

[Pd(cinnamyl)(BrettPhos)]OTf by reacting with [(cinnamyl)PdCl]₂and AgOTf.
[Pd(crotyl)(BrettPhos)]OTf by reacting with [(crotyl)PdCl]₂ and AgOTf.
[Pd(allyl)(BrettPhos)]OTf by reacting with [(allyl)PdCl]2 and AgOTf.
Pd(allyl)(BrettPhos)Clby reacting with [(allyl)PdCl]₂.

For small scale and high throughput uses, product is also available as ChemBeads (928321)

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

G3和G4 Buchwald预催化剂

G3和G4 Buchwald预催化剂是一类最新的空气、湿度和热稳定型交叉偶联复合物，可用于键形成以实现其多功能性和高反应性。

KitAlysis™ C-N (Buchwald-Hartwig) High-Throughput Screening Kit

All contents in the foil bag are weighed, plated, packed, and sealed in a glove box under nitrogen.

G3 and G4 Buchwald Precatalysts

G3 and G4 Buchwald palladium precatalysts are the newest air, moisture, and thermally stable crossing-coupling complexes used in bond formation for their versatility and high reactivity.

View All Articles

Explore reliable, premium grade catalysis materials for your pharma or industrial project. Specialty chemicals and formulations are available in bulk quantities and volumes from a few grams to multi-metric tons with complete documentation to simplify your leap from development to commercialization.

Buchwald Group – Professor Product Portal

The Buchwald group has developed a series of highly active and versatile palladium precatalysts and biarylphosphine ligands used in cross-coupling reactions for the formation of C-C, C–N, C–O, C–F, C–CF3, and C–S bonds. The ligands are electron-rich, and highly tunable to provide catalyst systems with a diverse scope, high stability and reactivity. Furthermore, the new series of precatalysts are air-, moisture and thermally-stable and display good solubility in common organic solvents. The use of precatalysts ensures the efficient generation of the active catalytic species and allows one to accurately adjust the ligand:palladium ratio. The ligands, precatalysts and methodology developed in the Buchwald group are user friendly and have rendered previously difficult cross couplings reactions, much easier to achieve.

Generating Active ?L-Pd (0)? via Neutral or Cationic Π-Allylpalladium Complexes Featuring Biaryl/Bipyrazolylphosphines: Synthetic, Mechanistic, and Structure-Activity Studies in Challenging Cross-Coupling Reactions.

DeAngelis AJ, et al.

The Journal of Organic Chemistry, 80(13), 6794-6813 (2015)

Regioselective Synthesis of Benzimidazolones via Cascade C-N Coupling of Monosubstituted Ureas.

Ernst JB, et al.

Organic Letters, 16(14), 3844-3846 (2014)

2-Aminobiphenyl Palladacycles: The ?Most Powerful? Precatalysts in C-C and C-Heteroatom Cross-Couplings.

Bruneau A, et al.

ACS Catalysis, 5(2), 1386-1396 (2015)
