763713

Graphene oxide

sheets

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
CxOyHz
NACRES:
NA.23
UNSPSC Code:
12352103
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

form

powder or flakes

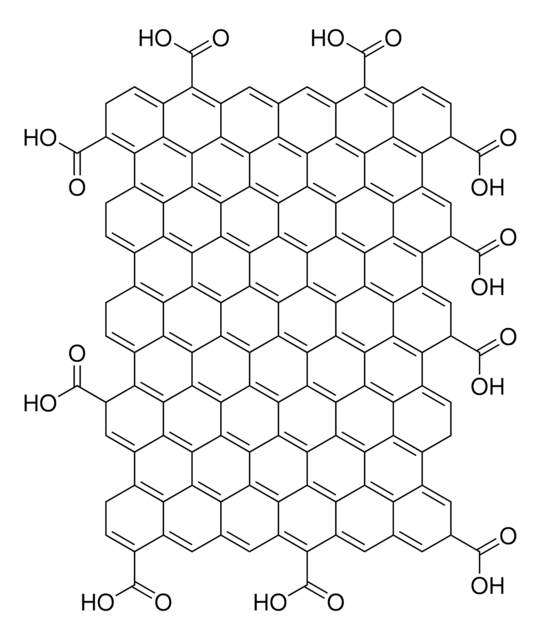

SMILES string

O=C(O)C1C2=C3C4=C5C6=C7C8=C9C%10=C%11C(C%12=C%13C%10=C%14C8=C%15C6=C%16C4=C%17C2=CC(C(O)=O)C%18=C%17C%19=C%16C%20=C%15C%21=C%14C%22=C%13C(C%23=C%24C%22=C%25C%21=C%26C%20=C%27C%19=C%28C%18=CC(C(O)=O)C%29=C%28C%30=C%27C%31=C%26C%32=C%25C%33=C%24C(C%34=C%35C

InChI

1S/C140H42O20/c141-131(142)26-13-23-15-44-62(140(159)160)45-16-24-14-40-31(132(143)144)5-1-29-41-20-48(135(149)150)56-33-7-3-28-27-2-6-32-55-37(133(145)146)11-9-35-60(138(155)156)42-17-25-18-43-61(139(157)158)36-10-12-38(134(147)148)58-46-21-50(137(153)154)59-47-22-49(136(151)152)57-34-8-4-30-39(19-26)51(23)78-72(44)88-75(45)80-52(24)79(54(29)40)95-71(41)83(56)101-93-69(33)64(28)91-90-63(27)68(32)92-86(66(35)55)73(42)81-53(25)82-74(43)87(67(36)58)96-76(46)85(59)103-97-77(47)84(57)102-94-70(34)65(30)89(78)105-104(88)115-98(80)111(95)116(101)126-122-110(93)107(91)120-119-106(90)108(92)99(81)114-100(82)112(96)118(103)128(124(114)119)123-113(97)117(102)127(130(122)129(120)123)121(109(94)105)125(115)126/h2,5,7-10,12-22,26,38,48-50H,1,3-4,6,11H2,(H,141,142)(H,143,144)(H,145,146)(H,147,148)(H,149,150)(H,151,152)(H,153,154)(H,155,156)(H,157,158)(H,159,160)

InChI key

VTWITIAIMADGRM-UHFFFAOYSA-N

General description

Graphene oxide (GO) is the solution processable precursor for bulk production of graphene based materials and devices. It is produced by the chemical exfoilation of graphite. GO is amphiphillic in nature, it also forms highly stable emulsions of organic solvents. Chemical modification of GO helps in improving the biocompatibility and solubility of graphene.

Application

Dielectric Materials for Field Effect Transistors (FET); Non-silicon-based materials for integrated circuits (IC). Some proposed applications of GO are:
  • water soluble/insoluble, targeted/untargeted drug and gene delivery applications
  • tissue engineering
  • electrochemical biosensors
  • optical biosensors
  • graphene oxide Langmuir Blodgett films as hole injection layers for organic light emitting diode.
Webinar: Graphene-Based Nanomaterials for Versatile Biosensors

Still not finding the right product?

Explore all of our products under Graphene oxide

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCJ2618
MKCF4166
MKCC0556
MKBW8258V
MKBV9577V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

碳纤维增强复合材料的3D打印

3D打印是一种增材制造，可用于快速制造具有高度可定制几何形状的部件。

3D打印石墨烯墨水：Creating Electronic and Biomedical Structures and Devices

自从十多年前被发现以来，碳-石墨烯的二维（2D）同素异形体一直是密集的多学科研究工作的主题。

3D Printing of Carbon Fiber-Reinforced Composites

3D printing is a type of additive manufacturing that can be used to rapidly fabricate components with highly customizable geometries.

View All Articles
Yajie Yang et al.
Nanoscale research letters, 9(1), 537-537 (2014-10-10)
In this paper, we demonstrated the utilization of reduced graphene oxide (RGO) Langmuir-Blodgett (LB) films as high performance hole injection layer in organic light-emitting diode (OLED). By using LB technique, the well-ordered and thickness-controlled RGO sheets are incorporated between the
Anastasios Stergiou et al.
Beilstein journal of nanotechnology, 5, 1580-1589 (2014-09-24)
Graphene research and in particular the topic of chemical functionalization of graphene has exploded in the last decade. The main aim is to increase the solubility and thereby enhance the processability of the material, which is otherwise insoluble and inapplicable
A K Geim et al.
Nature materials, 6(3), 183-191 (2007-03-03)
Graphene is a rapidly rising star on the horizon of materials science and condensed-matter physics. This strictly two-dimensional material exhibits exceptionally high crystal and electronic quality, and, despite its short history, has already revealed a cornucopia of new physics and
