773735

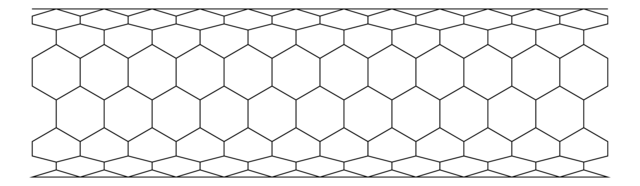

Carbon nanotube, single-walled

(6,5) chirality, ≥95% carbon basis (≥95% as carbon nanotubes), 0.78 nm average diameter

Synonym(s):

CHASM™, CNT, Signis® SG65i, SWCNT, SWNT, Single wall carbon nanotube

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

CAS Number:
308068-56-6
MDL number:
MFCD00133992
UNSPSC Code:
12352103
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

description

G/D Ratio: ≥20 (Raman 633 nm), Median length: 1 μm

assay

≥95% carbon basis (≥95% as carbon nanotubes)

form

powder (freeze-dried)

manufacturer/tradename

Signis® SG65i

surface area

≥700 m2/g

impurities

≤5 wt. % Moisture content

average diameter

0.78 nm

mp

3652-3697 °C (lit.)

density

1.7-1.9 g/cm3 at 25 °C (lit.)

bulk density

0.1 g/cm3

SMILES string

[C]

InChI

1S/C

InChI key

OKTJSMMVPCPJKN-UHFFFAOYSA-N

General description

Produced using CHASM′s patented CoMoCAT™ synthesis technology, Signis® SG65i is a single-wall carbon nanotube (CNT) product uniquely enriched in semiconducting tubes, with (6,5) chirality being most abundant. Approximately 95% of the CNTs in SG65i are semiconducting, with approximately 41% of those tubes being (6,5) chirality.

Application

Suitable for use in printed semiconductors, photovoltaic devices, sensors, medical research, etc.

Preparation Note

CoMoCAT™ Catalytic Chemical Vapor Deposition (CVD) Method

Legal Information

CHASM is a trademark of Chasm Advanced Materials
CoMoCAT is a trademark of Chasm Advanced Materials
Signis is a registered trademark of Chasm Advanced Materials

Still not finding the right product?

Explore all of our products under Carbon nanotube, single-walled

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable
