793663

Graphene dispersion

greener alternative

forinkjet printing, with ethyl cellulose in cyclohexanone and terpineol, inkjetprintable

Synonym(s):

inkjetting ink, conductive ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
12352103
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Graphene ink, for inkjet printing, with ethyl cellulose in cyclohexanone and terpineol, inkjet printable

description

Electrodes

Quality Level

100

form

liquid

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

concentration

2.4 wt. % (solid (graphene and ethyl cellulose) in cyclohexanone/terpineol)

resistivity

0.003-0.008 Ω-cm (thermally annealed 250°C for 30 minutes, film thickness >100 nm)

particle size

≤3 μm

surface tension

30 dyn/cm

viscosity

8-15 mPa.s(30 °C)

bp

213-218 °C (Terpineol)

density

0.9375 g/mL at 25 °C

greener alternative category

Enabling,

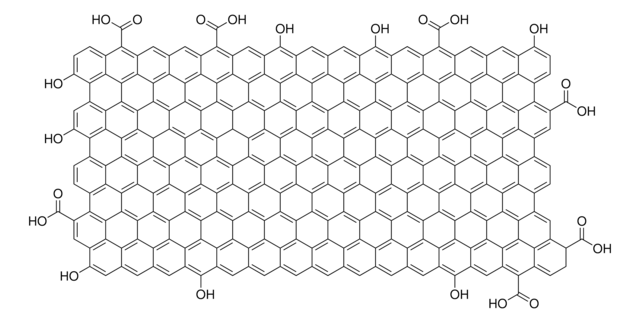

SMILES string

OC(C1=C2C(C3=C(C4=C(C5=C(C6=C(C7=C(C8=C(C9=C(C%10=C(C%11=C(C%12=C(C%13=C(C%14=C(C%15=CC=C%16O)C%16=C%17)C%17=C%18)C%18=C%19C(O)=O)C%19=C%20)C%20=C%21O)C%21=C%22)C%22=C%23)C%23=C%24O)C%24=C%25)C%25=C%26C(O)=O)C%26=C%27)C%27=C2)=C%28C%29=C(C%30=C%31C%28=C%3

General description

Inkjet printable graphene dispersion is a promising candidate for organic and printed electronics in a variety of applications such as sensors, conductors, supercapacitors etc. Graphene-based functional devices and films can be designed by the inkjet printing process, by a controlled expulsion of the fluid from the nozzle.
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Graphene inks are highly conductive, low cost and super flexible. Click here for more information.

Application

Formulated for Inkjet printing.
Curing Condition: 250-350°C, 20-30min

This ink was tested on polyimide and silicon dioxide substrates.

Other Notes

Webinar: Graphene-Based Nanomaterials for Versatile Biosensors

waveform file (downloadable .csv file)

cartridge settings file (downloadable. jst file)

Legal Information

Sold under Material Transfer Agreement with Mark Hersam group at Northwestern University.

Still not finding the right product?

Explore all of our products under Graphene ink

pictograms

CorrosionExclamation mark
GHS05,GHS07

signalword

Danger

Hazard Classifications

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Acute Tox. 4 Oral - Eye Dam. 1 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

10 - Combustible liquids

wgk

WGK 2

flash_point_f

143.6 °F

flash_point_c

62 °C

Regulatory Information

危险化学品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCQ6312
MKCM2586
MKCJ7822
MKCG1025
MKCC3694

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

3D打印石墨烯墨水：Creating Electronic and Biomedical Structures and Devices

自从十多年前被发现以来，碳-石墨烯的二维（2D）同素异形体一直是密集的多学科研究工作的主题。

印刷电子用石墨烯油墨

新兴的印刷电子领域需要一套功能材料以供使用，包括可弯曲的和大面积的显示器、无线射频识别标签、便携式能量收集和存储、生物医学和环境传感器阵列5,6 和逻辑电路。

3D Printing Graphene Ink: Creating Electronic and Biomedical Structures and Devices

Since its discovery little more than a decade ago,1 the two-dimensional (2D) allotrope of carbon—graphene—has been the subject of intense multidisciplinary research efforts.

View All Articles
Inkjet Printing of High Conductivity, Flexible Graphene Patterns.
Ethan B. Secor, Pradyumna L. Prabhumirashi, Kanan Puntambekar, et al.
The Journal of Physical Chemistry Letters, 4(8), 1347-1351 (2013)
High-Performance Solid-State Supercapacitors and Microsupercapacitors Derived from Printable Graphene Inks
Lei Li, Ethan B. Secor, Kan-Sheng Chen, Jian Zhu, Xiaolong Liu, Theodore Z. Gao, et. al.
Advanced Energy Materials, 6, N/A-N/A (2016)
Efficient inkjet printing of graphene.
Li J
Advanced Materials, 25(29), 3985-3992 (2013)
