901046

Carbon nanotube forestvertically aligned on Si substrate

Drawable, DxL 10-40 nm× 1.0 mm ± 0.5 mm

Synonym(s):

CNT array, MWCNT

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

CAS Number:
308068-56-6
MDL number:
MFCD00133992
UNSPSC Code:
12352103
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Carbon nanotube array, multi-walled, drawable, vertically aligned on Si substrate

description

Form: 10 mmx20 mm Si substrate

Quality Level

100

assay

98% (carbon as CNT)

diam. × L

10-40 nm × 1.0 mm ± 0.5 mm

SMILES string

[C]

InChI

1S/C

InChI key

OKTJSMMVPCPJKN-UHFFFAOYSA-N

General description

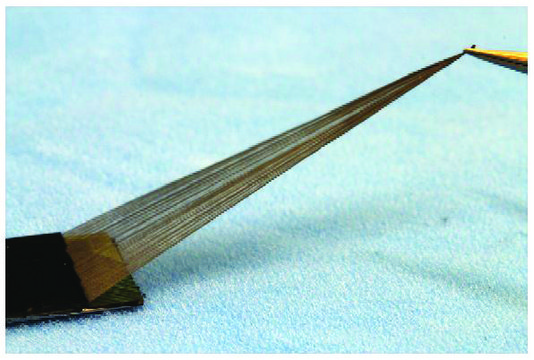

Multi-walled carbon nanotubes (MWCNT) are vertically aligned on a Si substrate with a high density. Since all the MWCNTs are bundled by van der Walls force, CNT web is drawn easily by pinching an edge of the array out from the substrate. The web is very light weight and robust, and sometimes semi-transparent.
Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of our CNT is ~3, showing high crystal quality.

Preparation Note

Chemical Vapor Deposition (CVD) method.

Still not finding the right product?

Explore all of our products under Carbon nanotube array, multi-walled, drawable

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Regulatory Information
