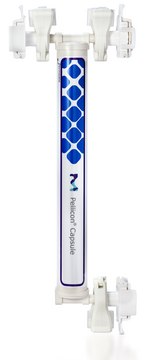

PCC030C01C
Pellicon® Capsule with Ultracel® Membrane
pore size 30 kDa, C Screen, size 0.1 m² , with AseptiQuik® G connectors
Synonym(s):
Pellicon® Capsule with Ultracel® Membrane
Select a Size
About This Item
Product Name
Pellicon® Capsule 0.1 m2 Ultracel® 30 kDa C Screen, Feed: AseptiQuik® G Connector Retentate: AseptiQuik® G Connector Permeate: AseptiQuik® G Connector
Quality Level
material
EPDM rubber seal, PPO/PS blend (core), PPO/PS blend housing, TPE seal, Ultracel® membrane, composite regenerated cellulose (CRC) membrane, epoxy adhesive, polyester screen, polypropylene screen, polyurethane adhesive
sterility
sterile; γ-irradiated
product line
Pellicon®
storage condition
room temperature (15-30°C)
parameter
4-8 L/min-m2 flow rate (Feed), 50 psi max. transmembrane pressure (3.5 bar) at 4-30 °C (Forward), 75 psi max. inlet pressure (5.1 bar) at 4-30 °C
technique(s)
ultrafiltration: suitable
L
41.1 cm (16.2 in.)
diam.
3.8 cm (1.5 in.)
filtration area
0.1 m2
screen size
, Type C screen (coarse screen)
size
0.1 m2 , with AseptiQuik® G connectors
volume
38 mL , in feed channel, 68 mL , in permeate channel
impurities
≤5 ppm Meets TOC (in retentate effluent, after a WFI flush of 20 L/m2)
matrix
Ultracel®
pore size
30 kDa
pH range
2-13
fitting
inlet/outlet connection (Feed: AseptiQuik® G Connector), inlet/outlet connection (Permeate: AseptiQuik® G Connector), inlet/outlet connection (Retentate: AseptiQuik® G Connector)
General description
Application
Features and Benefits
Gamma sterilized and preseravtive-free - ready to process in minutes
True single-use, self-contained capusle - fast, safe, and flexible batch turnaround
Proven Ultracel® membrane and C screen - high recovery, superior mass transfer, solvent resistance
Pellicon® TFF proven performance - true linear scalability within Pellicon® TFF families
Packaging
Other Notes
Comprehensive documentation to support qualification, risk assessment and process optimization needs.
Consolidation of product specific testing, quality and regulatory information to simplify compliance requirements.
Convenient 24/7 access to up-to-date product information.
