PEZGS0816

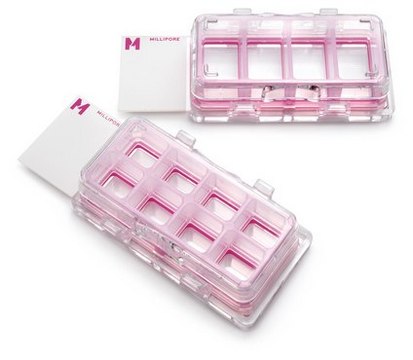

Millicell® EZ Slide

8-well glass chamber slide, 0.7 cm2/well, 16/pk, sterile

Synonym(s):

8 well glass slide, Chamber slides

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
41104923
NACRES:
NB.22
eCl@ss:
32011202
Material:
polypropylene wells, soda-lime glass slide
Sterility:
ethylene oxide treated, sterile
Packaging:
box of 16 units (4 trays, 4 units/tray)
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

material

polypropylene wells, soda-lime glass slide

sterility

ethylene oxide treated, sterile

feature

Raised corner ridges on the lid facilitate stacking of multiple units

packaging

box of 16 units (4 trays, 4 units/tray)

manufacturer/tradename

Millicell®

technique(s)

cell based assay: suitable, cell culture | mammalian: suitable, immunocytochemistry: suitable

H

13.9 mm , excluding lid, 16.2 mm , including lid

L × W × H

75 mm × 25 mm × 1 mm, slide dimensions

L

77.8 mm

W

33.8 mm

size

8 wells

well surface area

0.7 cm2

well volume

200-700 μL

shipped in

ambient

storage temp.

10-30°C

General description

Millicell® EZ Slide allows the user to grow, fix, and stain cells directly on a microscope slide. There is no need to disassemble the unit or transfer cells from one device to another prior to analysis. The polypropylene wells are resistant to most fixatives used, so the cells can be grown on the slide and stained right in the well. Once stained, the microscope slide can be easily removed by pressing down the four side tabs of the unit and lifting the wells off of the slide. This easy slide removal reduces the risk of damaging the cells and no special tools are required to remove the wells from the slide. Raised corner ridges on the cover facilitate stacking of multiple units in the incubator, or they can be incubated in the tray supplied with the units.

Preparation Note

  1. Culture, fix, and stain the cells according to preferred protocol.
  2. To access the microscope slide, hold the Millicell® EZ SLIDE down on a flat surface and break the four tabs by pushing them down with the thumb. Remove the cover. Hold the slide down and lift the wells upward to remove. Remove slide from holder.
