546674

酞菁铜(II)

sublimed grade, Dye content 99 %

别名:

CuPc, 酞菁蓝, 颜料蓝 15

登录 查看组织和合同定价。

选择尺寸

变更视图

关于此项目

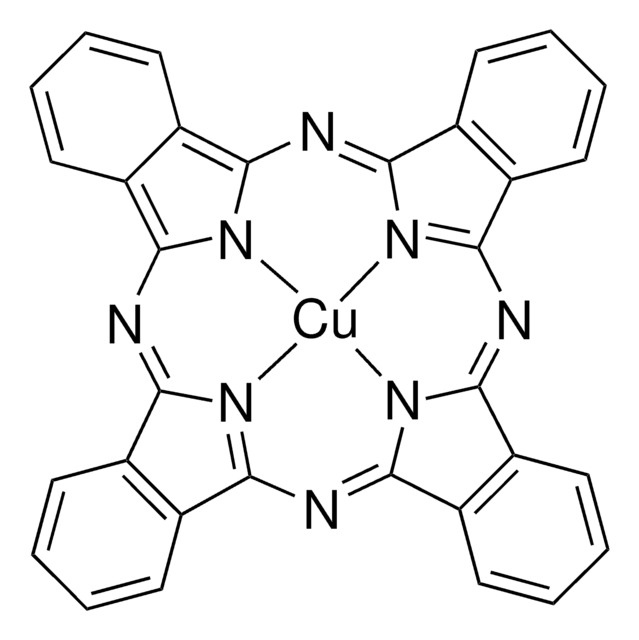

经验公式（希尔记法）:
C32H16CuN8
化学文摘社编号:
147-14-8
分子量:
576.07
EC Number:
205-685-1
UNSPSC Code:
12352103
NACRES:
NA.23
PubChem Substance ID:
24878913
MDL number:
MFCD00010719
Colour Index Number:
74160
Beilstein/REAXYS Number:
4121848
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

grade

sublimed grade

composition

Dye content, 99%

λmax

678 nm

fluorescence

λem 404 nm

orbital energy

HOMO 5.2 eV , LUMO 3.5 eV

OLED device performance

ITO/CuPc/NPD/Alq3/C60/Mg:Ag

  • Color: green
  • Max. Luminance: 17200 Cd/m2
, ITO/CuPc/NPD/Alq3/LiF/Al
  • Color: red
  • Max. Luminance: 2000 Cd/m2
  • Turn-On Voltage: 7.5 V
, ITO/CuPc/NPD/CBP:FIrpic (6%)/BAlq3/LiF/Al
  • Color: blue
  • Max. EQE: 4.5 %

OPV device performance

ITO/CuPc/PTCDA/In

  • Short-circuit current density (Jsc): 53.1 mA/cm2
  • Open-circuit voltage (Voc): 0.57 V
  • Fill Factor (FF): 0.61
  • Power Conversion Efficiency (PCE): 4.2 %
, ITO/PEDOT:PSS/CuPc/C60/BCP/Al
  • Short-circuit current density (Jsc): 18.8 mA/cm2
  • Open-circuit voltage (Voc): 0.58 V
  • Fill Factor (FF): 0.52
  • Power Conversion Efficiency (PCE): 3.6 %

application(s)

(Dyes for contact lenses)

SMILES string

c1ccc2c(c1)C3=NC4=[N@@H]5C(=Nc6n7c(N=C8c9ccccc9C%10=[N@@H]8[Cu]57N3C2=N%10)c%11ccccc6%11)c%12ccccc4%12

InChI

1S/C32H16N8.Cu/c1-2-10-18-17(9-1)25-33-26(18)38-28-21-13-5-6-14-22(21)30(35-28)40-32-24-16-8-7-15-23(24)31(36-32)39-29-20-12-4-3-11-19(20)27(34-29)37-25;/h1-16H;/q-2;+2

InChI key

XCJYREBRNVKWGJ-UHFFFAOYSA-N

General description

酞菁铜（CuPc）是一种金属酞菁染料，可作为p型半导体。它的电荷迁移率为10-4 cm2/Vs。它形成了化学性质稳定的薄膜，具有光电导性和催化活性。
可根据要求追踪特定TGA / DSC批次

Application

CuPc是一种半导体材料，可用于各种光电设备，例如发光二极管（LED）、场效应晶体管（FET）和太阳能电池/有机光伏（OPV）。

Still not finding the right product?

Explore all of our products under 酞菁铜(II)

存储类别

11 - Combustible Solids

wgk

nwg

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)
