765198

锂锰镍氧化物

greener alternative

electrode sheet, aluminum substrate, size 5 in. × 10 in.

别名:

LMNO, Lithium nickel manganate

登录 查看组织和合同定价。

选择尺寸

变更视图

关于此项目

线性分子式:

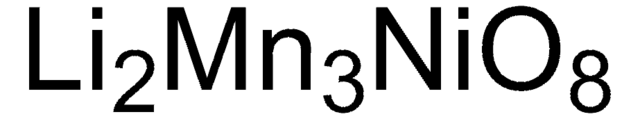

Li2Mn3NiO8
NACRES:
NA.23
PubChem Substance ID:
329767161
UNSPSC Code:
26111700
MDL number:
MFCD16879050
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

grade

battery grade

description

Nominal Voltage: 4.7 V, Li/Li+

assay

≥98%

form

solid

composition

loading, ≥80%

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

extent of labeling

≥80% loading

size

5 in. × 10 in.

thickness

25-50 μm

particle size

4-7 μm (typical)

capacity

115 mAh/g(minimum), 125 mAh/g(nominal at 0.1C)

mp

>1000 °C

application(s)

battery manufacturing

greener alternative category

, Enabling

SMILES string

[Li+].[Li+].[O-][Mn]=O.[O-][Ni]=O.O=[Mn]=O.O=[Mn]=O

InChI

1S/2Li.3Mn.Ni.8O/q2*+1;;;;;;;;;;;2*-1

InChI key

NTWFBJKNXFUJHM-UHFFFAOYSA-N

General description

Lithium manganese nickel oxide (LMNO) is a class of electrode material that can be used in the fabrication of lithium-ion batteries. Lithium-ion batteries consist of anode, cathode, and electrolyte with a charge-discharge cycle. These materials enable the formation of greener and sustainable batteries for electrical energy storage.
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product has been enhanced for energy efficiency. Find details here.

Application

LMNO is a spinel cathode material that has a storage capacity greater than 200 mAhg−1 at a voltage around 4.7 V. It has a high irreversible capacity due to its inherent property to self-discharge. LMNO can be used in the fabrication of high-performance lithium-ion batteries.
LMNO is cathode material with good electrochemical performance for high power and high energy density Lithium ion batteries. LMNO can can intercalate Li reversibly at a high voltages.

The LMNO casted electrode sheets can be cut into appropriate size and is ready to be used in lithium ion batteries.

Other Notes

Crystal Structure: Cubic

Operating Condiditons:
  • Recommended maximum charge voltage: 5.0 V vs Li/Li+
  • Recommended maximum charge current: 5 C
  • Recommended cut-off voltage for discharge: 3.5 V vs Li/Li+
  • Recommended maximum discharge current: 5 C
  • Recommended charge method: constant current - constant voltage

pictograms

Health hazardExclamation mark
GHS08,GHS07

signalword

Warning

hcodes

H317,H351

Hazard Classifications

Carc. 2 - Skin Sens. 1

存储类别

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable
