MERS03SAP

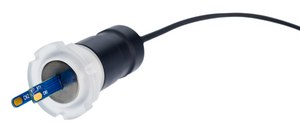

Millicell® ERS 3.0 Standard Electrode

Standard adjustable Electrode for Millicell ERS 3.0 Digital Voltohmmeter. Can be used with 6-, 12-, 24-well inserts.

别名:

ERS, Standard electrode, TEER Reader electrode, TEER Reader probe, Transepithelial Electrical resistance

登录 查看组织和合同定价。

选择尺寸

变更视图

关于此项目

NACRES:
NB.24
UNSPSC Code:
41100000
技术服务
需要帮助？我们经验丰富的科学家团队随时乐意为您服务。
让我们为您提供帮助

product line

Millicell®

General description

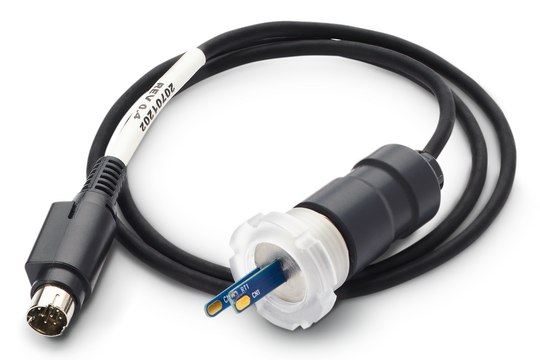

The Millicell® ERS 3.0 Digital VoltOhmMeter reliably measures membrane potential and resistance of epithelial and endothelial cells in culture. This device qualitatively measures cell monolayer health and cell confluence. The Standard Electrode Probe fits into 3 different sizes of membrane inserts and receiver plates (6-well, 12-well, and 24-well). The Standard Electrode Probe is specially designed to be adjustable so that the depth of the electrode reaches the bottom of the well plate while the adjustable ring rests on top of the well. An Electroless Nickle Immersion Gold (ENIG) plate on each external facing electrode tip measures voltage. The small size of the electrodes enables easy measurement of transepithelial voltage and the resistance of cells grown on microporous membranes.

Application

To study endothelial/epithelial barrier models (like the blood-brain barrier models, gastrointestinal tract models, and pulmonary models), To study efficacy of drugs, To evaluate pharmacological toxicities

Features and Benefits

  • Ergonomic standing in-well probe
  • Adjustable electrode, compatible with a wide variety of cell culture inserts and plates
  • Built-in sensor to measure and record media temperature
  • Resistance range of 0 – 100 kΩ, with 1 Ω resolution
  • Demonstrates low noise, greater resolution, and high accuracy

Legal Information

Millicell is a registered trademark of Merck KGaA, Darmstadt, Germany
