PCHT24H48

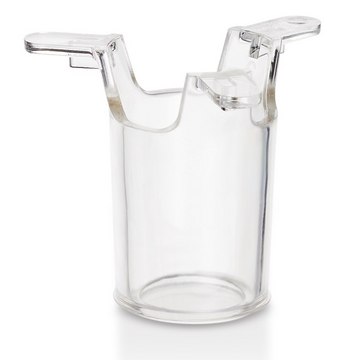

Millicell® 24 well hanging cell culture inserts
pore size 0.4 μm, clear PET membrane, diam. 6.5 mm, Tissue Culture (TC)-treated surface, sterile
别名:
permeable inserts, tissue culture inserts, transparent membrane insert, imaging insert
选择尺寸
关于此项目
Quality Level
material
clear PET membrane, polystyrene housing
sterility
γ-irradiated, sterile
feature
4x106 pores/cm2
packaging
pack of 48 ea (individually blister packaged)
manufacturer/tradename
Millicell®
parameter
max. temp. at 37 °C
technique(s)
cell attachment: suitable, cell differentiation: suitable, drug transporter assay: suitable, immunocytochemistry: suitable, immunofluorescence: suitable, permeability assay: suitable
H
15.5 mm
diam.
6.5 mm
insert maximum volume
0.4 mL
insert working volume
0.2 mL
membrane thickness
9-16 μm
size
24 wells
surface area
0.3 cm2
color
clear membrane, transparent membrane
pore size
0.4 μm
binding type
Tissue Culture (TC)-treated surface
General description
This individually sterile-packaged insert has an optically clear 0.4 μm pore size membrane and fits in most 24-well tissue culture plates.
Application
- Barrier Assays
- Cell Proliferation
- Cell Surface Receptors
- Co-Culture
- Epithelial Cell Growth
- Feeder Layers
- Fluorescent Detection /Immunohistochemistry
- In Vitro Fertilization
- In Vitro Toxicology
- Microbial Attachment
- Phase Contrast Microscopy
- Polarized Protein Secretions
- Polarized Uptake
- Transport/Permeability
Features and Benefits
- Optically clear TC-treated PET membrane
- Low pore density (4 million pores/cm2)
- Compatible with most 24-well plates
- Apical assist rim to prevent membrane puncture or disruption of cells
- Easily access the basolateral side between the flanges
