236071

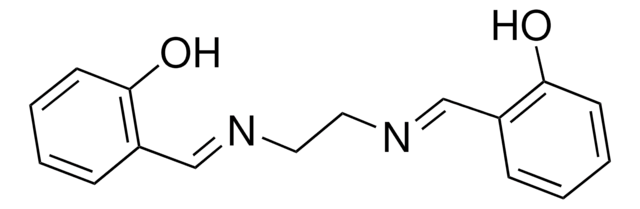

N,N′-Bis(salicylidene)ethylenediamine

98%

Synonym(s):

2,2′-Ethylenebis(nitrilomethylidene)diphenol, N,N′-Ethylenebis(salicylimine)

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
(CH2N=CHC6H4OH)2
CAS Number:
94-93-9
Molecular Weight:
268.31
UNSPSC Code:
12352100
NACRES:
NA.22
PubChem Substance ID:
24854136
EC Number:
202-376-3
Beilstein/REAXYS Number:
535296
MDL number:
MFCD00002244
Assay:
98%
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

assay

98%

mp

127-128 °C (lit.)

solubility

water: insoluble(lit.)

functional group

amine, imine

SMILES string

Oc1ccccc1\C=N\CC\N=C\c2ccccc2O

InChI

1S/C16H16N2O2/c19-15-7-3-1-5-13(15)11-17-9-10-18-12-14-6-2-4-8-16(14)20/h1-8,11-12,19-20H,9-10H2/b17-11+,18-12+

InChI key

VEUMANXWQDHAJV-JYFOCSDGSA-N

General description

N,N′-Bis(salicylidene)ethylenediamine (salen) reacts with ferric chloride in acetone solution to yield the complex (Fe salen Cl).

Application

N,N′-Bis(salicylidene)ethylenediamine (salen) immobilized on surfactant-coated alumina has been used as complexing agent for on-line preconcentration of copper and lead by flow injection-flame atomic absorption spectrometry (FI-AAS).

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Regulatory Information

新产品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCN9162
MKCF8752
MKBV5297V
MKBQ5356V
MKBL5405V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

感应染料

一氧化氮 (NO) 是神经元、内皮细胞和免疫系统中的信号转运分子。

Sensor Dyes

Nitric oxide (NO) as a signal transporter in neurons, endothelial cells and in the immune system.

Structure and Paramagnetism of Five-and Six-Co-ordinate N: N' Bis-salicylidene Ethylenediamine Iron (III) Chloride.
Gerloch M, et al.
Nature, 212, 809-810 (1966)
Teng Zhang et al.
Chemical communications (Cambridge, England), 48(70), 8766-8768 (2012-07-28)
Chiral metal-organic frameworks built from a Co-salen derived dicarboxylate bridging ligand exhibited different regioselectivities from the corresponding homogeneous catalyst by shutting down bimolecular activation pathways.
David J Burns et al.
Organic & biomolecular chemistry, 10(38), 7666-7668 (2012-08-30)
Due to the lack of availability of unnatural (+)-quinic acid as a starting material, a 6-step synthesis of butane diacetal-protected (4S,5S)-dihydroxycyclohexen-1-one (formally derived from (+)-quinic acid) has been devised. The key catalytic asymmetric step involves a chiral Co-salen-catalysed epoxide ring-opening
