About This Item

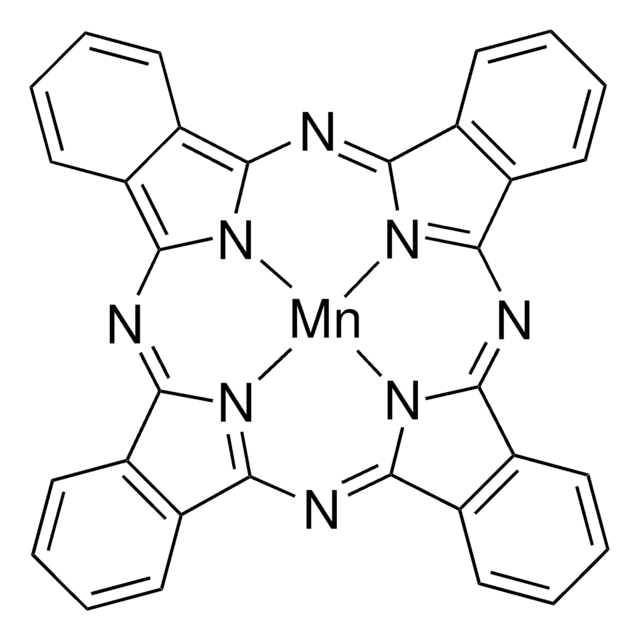

Empirical Formula (Hill Notation):
C32H16MnN8
CAS Number:
Molecular Weight:
567.46
NACRES:
NA.23
PubChem Substance ID:
UNSPSC Code:
12352103
MDL number:
form
powder
λmax
727 nm
SMILES string
[Mn]1n2c3nc4nc(nc5n1c(nc6nc(nc2c7ccccc37)c8ccccc68)c9ccccc59)c%10ccccc4%10
InChI
1S/C32H16N8.Mn/c1-2-10-18-17(9-1)25-33-26(18)38-28-21-13-5-6-14-22(21)30(35-28)40-32-24-16-8-7-15-23(24)31(36-32)39-29-20-12-4-3-11-19(20)27(34-29)37-25;/h1-16H;/q-2;+2
InChI key
ICIFYHOILPYQKB-UHFFFAOYSA-N
Application
Manganese (II) phthalocyanine is used as a coating of quartz crystals which is to be used as sensors for detecting H2S. It is used to discriminate between cheese varieties, detect volatile hazardous compounds and spoilt fruit.
Storage Class
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
ppe
Eyeshields, Gloves, type N95 (US)
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Detecting spoiled fruit in the house of the future
Fernandes DLA, et al.
Analytica Chimica Acta, 617(1), 171-176 (2008)
Jan Kruid et al.
Chemosphere, 175, 247-252 (2017-02-23)
Identifying the most efficient oxidation process to achieve maximum removal of a target pollutant compound forms the subject of much research. There exists a need to develop rapid screening tools to support research in this area. In this work we
A new analytical system, based on an acoustic wave sensor, for halitosis evaluation.
Fernandes DLA, et al.
Sensors and Actuators B, Chemical, 136(1), 73-79 (2009)
Global Trade Item Number
| SKU | GTIN |
|---|---|
| 379557-10G | 04061833424728 |
| 379557-1G | 04061826298688 |
