446653

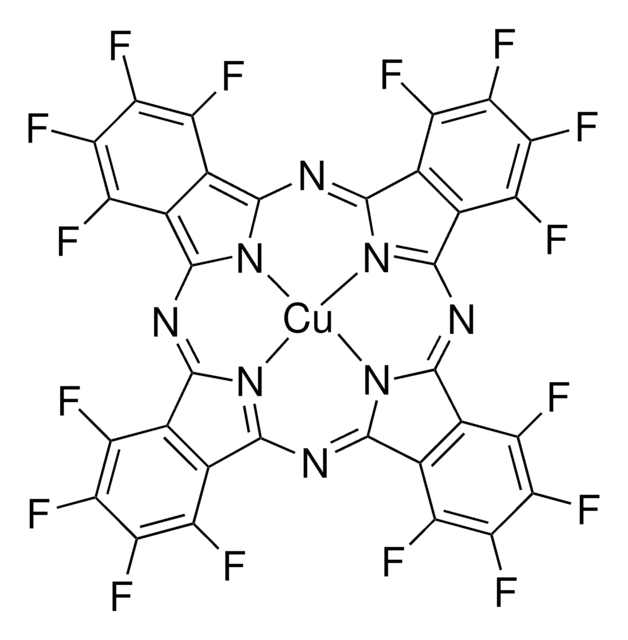

Copper(II) 1,2,3,4,8,9,10,11,15,16,17,18,22,23,24,25-hexadecafluoro-29H,31H-phthalocyanine

Dye content 80 %

Synonym(s):

F16CuPc

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C32CuF16N8
CAS Number:
14916-87-1
Molecular Weight:
863.92
NACRES:
NA.23
PubChem Substance ID:
24868290
UNSPSC Code:
12352103
MDL number:
MFCD00274642
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

form

powder

composition

Dye content, 80%

mp

>300 °C (lit.)

λmax

689 nm

SMILES string

Fc1c(F)c(F)c2c3nc(nc4n5[Cu]n6c(n3)c7c(F)c(F)c(F)c(F)c7c6nc8nc(nc5c9c(F)c(F)c(F)c(F)c49)c%10c(F)c(F)c(F)c(F)c8%10)c2c1F

InChI

1S/C32F16N8.Cu/c33-9-1-2(10(34)18(42)17(9)41)26-49-25(1)53-27-3-4(12(36)20(44)19(43)11(3)35)29(50-27)55-31-7-8(16(40)24(48)23(47)15(7)39)32(52-31)56-30-6-5(28(51-30)54-26)13(37)21(45)22(46)14(6)38;/q-2;+2

InChI key

FJAOBQORBYMRNO-UHFFFAOYSA-N

General description

Copper(II) 1,2,3,4,8,9,10,11,15,16,17,18,22,23,24,25-hexadecafluoro-29H,31H-phthalocyanine(F16CuPc) is an organic molecule that can be used as an electron transporting material with good air-stability and an electron mobility of 0.11 cm2/Vs . It is majorly used in a variety of energy conservation based applications.

Application

F16CuPc can be used as an electron transporting layer for semiconducting applications such as an electron accepting material for organic photovoltaic cells and as a catalyst in biomimetic sensors. It may also be used in the fabrication of organic thin film transistors(OTFTs) and quartz crystal microbalance(QCM) based sensors.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

Eyeshields, Gloves, type N95 (US)

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKBS8025V
MKBG1222V
MKBB6450
09698KJ
45996KH

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

Organic Materials for Thin Film Transistors

Flexible electronic circuits, displays, and sensors based on organic active materials will enable future generations of electronics products that may eventually enter the mainstream electronics market.

Soluble Pentacene Precursors

Fabrication procedure of organic field effect transistor device using a soluble pentacene precursor.

Self-Assembled Nanodielectrics (SANDs) for Unconventional Electronics

Review the potential of self-assembled multilayer gate dielectric films fabricated from silane precursors for organic, inorganic, and transparent TFT and for TFT circuitry and OLED displays.

View All Articles
Tetra-tert-butyl copper phthalocyanine-based QCM sensor for toluene detection in air at room temperature.
Kumar A, et al.
Sensors and Actuators B, Chemical, 210(1), 398-407 (2015)
Thickness-dependent structural transitions in fluorinated copper-phthalocyanine (F16CuPc) films.
de Oteyza DG, et al.
Journal of the American Chemical Society, 128(47), 15052-15053 (2006)
Fabrication of highly air-stable ambipolar thin-film transistors with organic heterostructure of F16CuPc and DH-alpha 6T.
Ye R, et al.
Solid-State Electron, 52(1), 60-62 (2008)
