515477

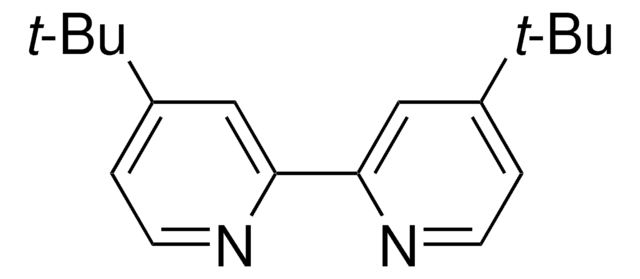

4,4′-Di-tert-butyl-2,2′-dipyridyl

98%

Synonym(s):

4,4′-Bis(tert-butyl)-2,2′-bipyridine, BBBPY

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C18H24N2
CAS Number:
72914-19-3
Molecular Weight:
268.40
NACRES:
NA.22
PubChem Substance ID:
24873822
UNSPSC Code:
12352100
MDL number:
MFCD01863731
Assay:
98%
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

200

assay

98%

mp

159-161 °C (lit.)

SMILES string

CC(C)(C)c1ccnc(c1)-c2cc(ccn2)C(C)(C)C

InChI

1S/C18H24N2/c1-17(2,3)13-7-9-19-15(11-13)16-12-14(8-10-20-16)18(4,5)6/h7-12H,1-6H3

InChI key

TXNLQUKVUJITMX-UHFFFAOYSA-N

General description

4,4′-Di-tert-butyl-2,2′-dipyridyl is a bipyridyl compound that is widely employed as a ligand for transition metals in the preparation of catalysts.

Application

4,4′-Di-tert-butyl-2,2′-dipyridyl can be used as a ligand:
  • In the synthesis of oxidovanadium(IV) complex [VOCl2(dbbpy)(H2O)], which is used as a catalyst for the epoxidation of cyclooctene in the presence of tert-butyl hydroperoxide.
  • In iron-catalyzed ortho-allylation of 1-arylpyrazoles via C-H activation.
  • In iridium-catalyzed borylation of (hetero)arenes.
  • In iron-catalyzed arylation of heterocycles in the presence of metallic Mg.
  • In nickel-catalyzed decarboxylation of block copolymers.

pictograms

Skull and crossbones
GHS06

signalword

Danger

Hazard Classifications

Acute Tox. 3 Dermal - Acute Tox. 3 Oral

Storage Class

6.1C - Combustible acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BGBC2957V
BGBC1903V
BGBB9052
BGBB8188V
BGBB7896V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Protocols

Concepts and Tools for RAFT Polymerization

We present an article about RAFT, or Reversible Addition/Fragmentation Chain Transfer, which is a form of living radical polymerization.

Typical Procedures for Polymerizing via RAFT

We presents an article featuring procedures that describe polymerization of methyl methacrylate and vinyl acetate homopolymers and a block copolymer as performed by researchers at CSIRO.

Polymerizing via ATRP

Polymerization via ATRP procedures demonstrated by Prof. Dave Haddleton's research group at the University of Warwick.

Articles

Rapid Arylboronic Esters Synthesis by Ir(I)-Catalysis

Arylboronic acids and esters, vital tools in chemical transformations, find extensive use, particularly in the Suzuki-Miyaura cross-coupling reaction.

Micro Review of RAFT Polymerization

Micro review of reversible addition/fragmentation chain transfer (RAFT) polymerization.

Arimasa Matsumoto et al.
Journal of the American Chemical Society, 133(17), 6557-6559 (2011-04-09)
The [4+2] benzannulation reaction of internal or terminal alkynes with 2-biaryl, 2-heteroarylphenyl, or 2-alkenylphenyl Grignard reagents in the presence of Fe(acac)(3), 4,4'-di-tert-butyl-2,2'-bipyridyl, and 1,2-dichloro-2-methylpropane takes place at room temperature in 1 h to give 9-substituted or 9,10-disubstituted phenanthrenes and congeners
Xian Liang Ho et al.
Inorganic chemistry, 58(2), 1469-1480 (2019-01-05)
Hydrogen (H2) is a clean fuel that can potentially be a future solution for the storage of intermittent renewable energy. However, current H2 production is mainly dominated by the energy intensive steam reforming reaction, which consumes a fossil fuel, methane
Yiu-Keung Sau et al.
Chemistry (Weinheim an der Bergstrasse, Germany), 12(36), 9323-9335 (2006-09-23)
Treatment of IrCl(3)x H(2)O with one equivalent of 4,4'-di-tert-butyl-2,2'-bipyridyl (dtbpy) in N,N-dimethylformamide (dmf) afforded [IrCl(3)(dmf)(dtbpy)] (1). Alkylation of 1 with Me(3)SiCH(2)MgCl resulted in C--Si cleavage of the Me(3)SiCH(2) group and formation of the Ir(III) silyl dialkyl compound [Ir(CH(2)SiMe(3))(dtbpy)(Me)(SiMe(3))] (2), which
