MDMO-PPV

Name: MDMO-PPV
Brand: ALDRICH

light-emitting polymer

Synonym(s):

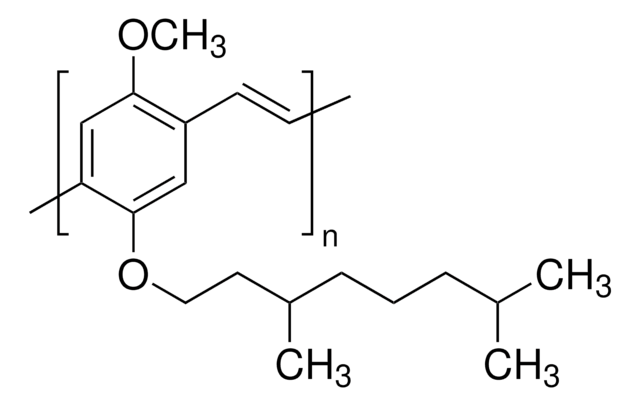

Poly[2-methoxy-5-(3′,7′-dimethyloctyloxy)-1,4-phenylenevinylene]

Select a Size

Change View

About This Item

CAS Number:

177716-59-5

UNSPSC Code:

12352103

PubChem Substance ID:

24878898

NACRES:

NA.23

MDL number:

MFCD03458070

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

description

Band gap: 2.2 eV

mol wt

M_n ~120,000

solubility

toluene, xylene, THF, chloroform, chlorobenzene, cyclohexanone: soluble

fluorescence

λ_ex 485 nm; λ_em 555 nm in toluene

orbital energy

HOMO -5.4 eV , LUMO -3.2 eV

OPV device performance

ITO/PEDOT:PSS/MDMO-PPV/PC61BM/Al

Short-circuit current density (J_sc): 0.96 mA/cm²
Open-circuit voltage (V_oc): 0.78 V
Fill Factor (FF): 0.5
Power Conversion Efficiency (PCE): 0.5 %

, ITO/PEDOT:PSS/MDMO-PPV:PC61BM (1:4)/LiF/Al

Short-circuit current density (J_sc): 5.25 mA/cm²
Open-circuit voltage (V_oc): 0.82 V
Fill Factor (FF): 0.61
Power Conversion Efficiency (PCE): 3.3 %

SMILES string

COc1ccc(OCCC(C)CCCC(C)C)cc1C=C

Description

General description

MDMO-PPV is a dialkoxy substituted poly(p-phenylenevinylene) (PPV) based conjugating polymer which has long side chains that form flexible films for organic electronics. It is a piezoresistant polymer with HOMO and LUMO orbital positions at 5.4 and 3.4 eV, respectively. MDMO-PPV forms an active layer that can be used in photoconductive and electroluminescent applications. Its processability and film-forming properties are superior to MEH-PPV.

Application

MDMO-PPV can also be used in the fabrication of bulk heterojunction solar cells(BHJ).

MDMO-PPV can be blended with (6,6 phenyl C61- butyric acid methyl ester) (PCBM), which can be coated on indium tin oxide (ITO) to fabricate polymeric solar cells. It can also be used as a red light emitting polymer (LEP), which can be used in the fabrication of red-green-blue laser-based polymeric membranes.
