673099

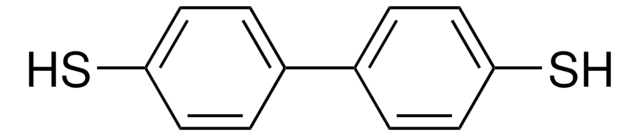

Biphenyl-4,4′-dithiol
95%
Synonym(s):
4,4′-Dimercaptobiphenyl, BDT, BPDT
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
Linear Formula:
HSC6H4C6H4SH
CAS Number:
Molecular Weight:
218.34
NACRES:
NA.23
PubChem Substance ID:
UNSPSC Code:
12352103
EC Number:
230-136-8
MDL number:
Quality Level
assay
95%
form
solid
mp
165-174 °C
storage temp.
−20°C
SMILES string
Sc1ccc(cc1)-c2ccc(S)cc2
InChI
1S/C12H10S2/c13-11-5-1-9(2-6-11)10-3-7-12(14)8-4-10/h1-8,13-14H
InChI key
VRPKUXAKHIINGG-UHFFFAOYSA-N
General description
Biphenyl-4,4′-dithiol (BPDT) is an aryl dithiol that is prepared by taking a mixture of stannous chloride dihydrate and glacial acetic acid with anhydrous hydrogen chloride. It forms a self-assembled monolayer on a variety of surfaces by attaching one thiol group to the surface while the other can create nucleation sites for other functional groups.
Application
BPDT can be used to functionalize iron nanoparticles (NPs) with the gold shell (Fe−Au) on polyethylene substrate. It can also be coated on the p-doped gallium arsenic (GaAs) substrate for a variety of semiconductor applications.
signalword
Warning
hcodes
Hazard Classifications
Acute Tox. 4 Oral - Aquatic Chronic 4
Storage Class
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
ppe
dust mask type N95 (US), Eyeshields, Gloves
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Articles
Self-assembled monolayers (SAMs) have diverse applications; article compares benefits of alkylthiolates on gold SAM systems.
Recent research highlights tunable properties of inorganic nanoparticles, driving interest in optoelectronics.
