759414

Tetraethyl orthosilicate

packaged for use in deposition systems

Synonym(s):

Tetraethyl orthosilicate, Orthosilicic acid tetraethyl ester, Silicon tetraethoxide, Tetraethoxysilane, Tetraethoxysilicon(IV), Tetraethyl silicate, TEOS

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

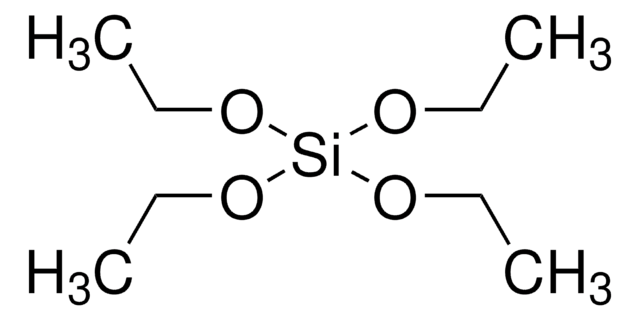

Linear Formula:
Si(OC2H5)4
CAS Number:
78-10-4
Molecular Weight:
208.33
UNSPSC Code:
12352103
NACRES:
NA.23
PubChem Substance ID:
329766783
EC Number:
201-083-8
Beilstein/REAXYS Number:
1422225
MDL number:
MFCD00009062
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

vapor density

7.2 (vs air)

vapor pressure

<1 mmHg ( 20 °C)

assay

≥99.5% (GC)

form

liquid

refractive index

n20/D 1.382 (lit.)

bp

168 °C (lit.)

density

0.933 g/mL at 20 °C (lit.)

SMILES string

CCO[Si](OCC)(OCC)OCC

InChI

1S/C8H20O4Si/c1-5-9-13(10-6-2,11-7-3)12-8-4/h5-8H2,1-4H3

InChI key

BOTDANWDWHJENH-UHFFFAOYSA-N

Application

Commonly used as a precursor to prepare xerogel
Tetraethyl orthosilicate (TEOS) is an oxygen containing precursor of Si used for the deposition of:
  • Si oxide
  • Oxycarbide
  • Doped silicate
  • Silanol
  • Siloxane polymer
  • Organosilicon thin films

The films can be deposited at low temperatues (<250 °C). TEOS is also used to deposit mesoporous and nanoporous thin films of silica. These porous films can be doped during deposition to further enhance their properties.
Will interact with dodecylamine in the formation of intercalation compounds of H+-magadiite and used in a study of mixed-metal bioactive glasses.

Still not finding the right product?

Explore all of our products under Tetraethyl orthosilicate

pictograms

FlameExclamation mark
GHS02,GHS07

signalword

Warning

Hazard Classifications

Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Liq. 3 - STOT SE 3

target_organs

Respiratory system

Storage Class

3 - Flammable liquids

wgk

WGK 1

flash_point_f

113.0 °F - closed cup

flash_point_c

45 °C - closed cup

Regulatory Information

危险化学品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKBF9200V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Andreas Kay et al.
Journal of the American Chemical Society, 128(49), 15714-15721 (2006-12-07)
Thin films of silicon-doped Fe2O3 were deposited by APCVD (atmospheric pressure chemical vapor deposition) from Fe(CO)5 and TEOS (tetraethoxysilane) on SnO2-coated glass at 415 degrees C. HRSEM reveals a highly developed dendritic nanostructure of 500 nm thickness having a feature
Nils R Blumenthal et al.
Proceedings of the National Academy of Sciences of the United States of America, 111(45), 16124-16129 (2014-10-29)
Extracellular soluble signals are known to play a critical role in maintaining neuronal function and homeostasis in the CNS. However, the CNS is also composed of extracellular matrix macromolecules and glia support cells, and the contribution of the physical attributes
Seong Cheol Hong et al.
International journal of nanomedicine, 6, 3219-3231 (2012-01-13)
Superparamagnetic iron oxide nanoparticles (SPIONs) have been widely utilized for the diagnosis and therapy of specific diseases, as magnetic resonance imaging (MRI) contrast agents and drug-delivery carriers, due to their easy transportation to targeted areas by an external magnetic field.
