791245

N749 Black Dye

Synonym(s):

Greatcell Solar®, Black dye, Ruthenium 620, Tris(N,N,N-tributyl-1-butanaminium)[[2,2′′6′,2′′-terpyridine]-4,4′,4′′-tricarboxylato(3-)-N1,N1′,N1′′]tris(thiocyanato-N)hydrogen ruthenate(4-)

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C69H116N9O6RuS3
Molecular Weight:
1364.98
NACRES:
NA.23
PubChem Substance ID:
329768264
UNSPSC Code:
12352103
MDL number:
MFCD28016340
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

assay

85% (HPLC)

Quality Level

100

form

powder

color

dark green

λmax

615, 415, 341, 329 nm at 0.02 mM in ethanol (lit.)

SMILES string

CCCC[N+](CCCC)(CCCC)CCCC.[O-]C(C1=CC(C2=NC=CC(C([O-])=O)=C2)=NC(C3=CC(C([O-])=O)=CC=N3)=C1)=O.S=C=N[Ru](N=C=S)N=C=S.CCCC[N+](CCCC)(CCCC)CCCC.CCCC[N+](CCCC)(CCCC)CCCC

InChI

1S/C18H11N3O6.3C16H36N.3CNS.Ru/c22-16(23)9-1-3-19-12(5-9)14-7-11(18(26)27)8-15(21-14)13-6-10(17(24)25)2-4-20-13;3*1-5-9-13-17(14-10-6-2,15-11-7-3)16-12-8-4;3*2-1-3;/h1-8H,(H,22,23)(H,24,25)(H,26,27);3*5-16H2,1-4H3;;;;/q;3*+1;3*-1;+3/p-3

InChI key

YOIDEEDNCKVVPH-UHFFFAOYSA-K

General description

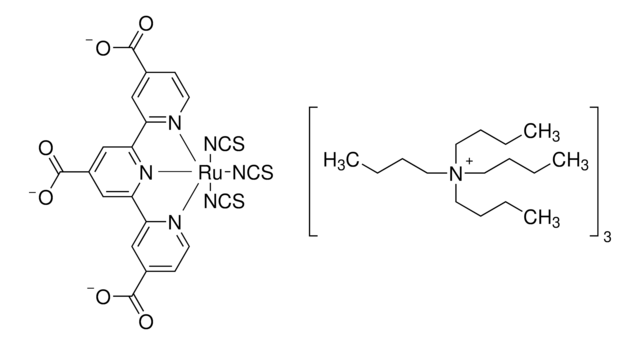

N749 Black Dye (N749) has ruthenium at the center that forms a co-ordinate bond with the monoprotonated tricarboxyterpyridine and three thiocyanates. It can be used as a sensitizer that functionalizes the semi-conducting materials that exhibit an absorption peak in the near infrared region.

Application

Reduced graphene oxide (rGO) can be surface modified by using N749 to enhance the photocatalytic characteristics of hydrogen evolution system. It may also be used as a high efficiency dye for niobium pentoxide (Nb2O5) photoanodes which can be used for the fabrication of titanium oxide (TiO2) coated dye sensitized solar cells (DSSCs).
N749 Black Dye is designed for the widest range spectral sensitisation of wide band-gap oxide semiconductors; like titanium dioxide up to wavelengths beyond 800nm.
Recommended application in 0.2-0.3mM solution with ethanol or acetonitrile/tert-butanol (1:1; vol:vol).

Legal Information

Greatcell Solar is a registered trademark of Greatcell Solar

pictograms

Exclamation mark
GHS07

signalword

Warning

Hazard Classifications

Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1 - STOT SE 3

target_organs

Respiratory system

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Regulatory Information

新产品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCH8922
MKBV1736V
MKBR1472V

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

Understanding and Successfully Applying Materials for Dye-Sensitized Solar Cells

While dye sensitization as the basis for color photography has been accepted for a very long time,1 attempts to use this principle for the conversion of solar light to electricity generally had resulted only in very low photocurrents, below 100 nA/cm

Ruthenium-based dyes for Dye-sensitized Solar Cells

Dye-sensitized solar cells (DSCs) are 3rd generation solar cells combining the promise of high efficiency with low production costs.

Test of Different Sensitizing Dyes in Dye-Sensitized Solar Cells Based on Nb2O5 Photoanodes
Latini A and Panetta R
ENERGIES, 11(4), 975-975 (2018)
Ruthenium Dye N749 Covalently Functionalized Reduced Graphene Oxide: A Novel Photocatalyst for Visible Light H2 Evolution
Huang J, et al.
The Journal of Physical Chemistry C, 119(50), 27892-27899 (2015)
Katoh; Ryuzi;
Journal of Materials Chemistry, 17(30), 3190-3196 (2007)
