794333

PTB7-Th

Synonym(s):

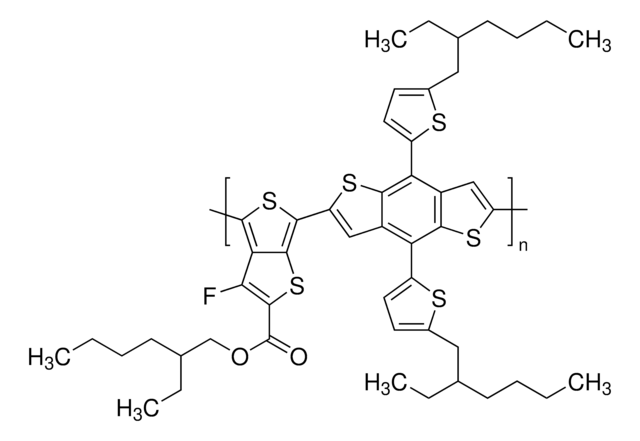

PCE-10, Poly([2,6′-4,8-di(5-ethylhexylthienyl)benzo[1,2-b;3,3-b]dithiophene]{3-fluoro-2[(2-ethylhexyl)carbonyl]thieno[3,4-b]thiophenediyl})

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
(C49H57FO2S6)n
CAS Number:
1469791-66-9
MDL number:
MFCD21363438
NACRES:
NA.23
UNSPSC Code:
12352103
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Quality Level

100

description

Band gap: 1.57 eV, Shiny, purple, fiber-like solid

form

solid

mol wt

>145,000

solubility

chlorobenzene: soluble, dichlorobenzene: soluble

orbital energy

HOMO -5.38 eV , LUMO -3.81 eV

PDI

2.2

General description

Poly([2,6′-4,8-di(5-ethylhexylthienyl)benzo[1,2-b;3,3-b]dithiophene]{3-fluoro-2[(2-ethylhexyl)carbonyl]thieno[3,4-b]thiophenediyl}) (PTB7-Th) is a semiconducting polymer with a narrow band gap of 1.59 eV and an absorption peak at 780 nm. The devices fabricated from PTB7-Th have been shown to have higher output voltage and short circuit current density than PTB7.

Application

PTB7-Th is mainly used as an active layer in organic solar cells (OSCs). It forms a blend with different acceptor materials which include PC71BM, ICBA, and PCBM to potentially improve the power conversion efficiency (PCE) of the OSCs.
High-Efficiency Organic Solar Cells (OPVs)

OPV Device Structure: ITO/PEDOT:PSS/Polymer:PC71BM/ Al

  • JSC = 19.8 mA/cm2 \
  • VOC = 0.79 V
  • FF = 0.65
  • PCE = 10.12%

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable
