795372

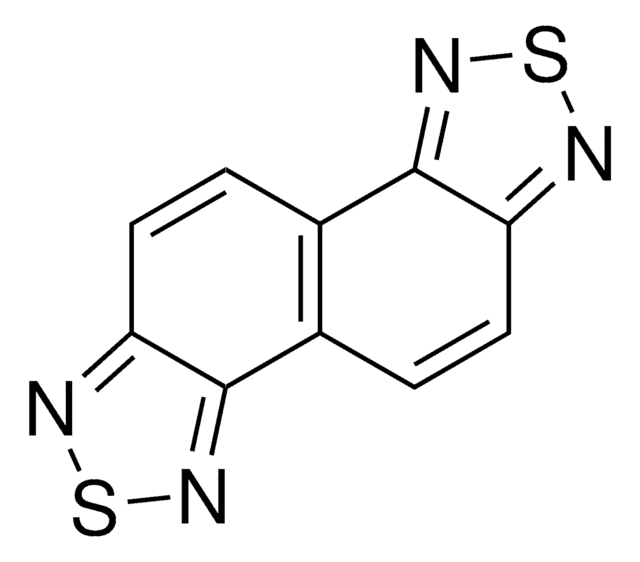

Naphtho[1,2-c:5,6-c′]bis[1,2,5]thiadiazole
>98% (HPLC)
Synonym(s):
NT, NTz
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
Empirical Formula (Hill Notation):
C10H4N4S2
CAS Number:
Molecular Weight:
244.30
UNSPSC Code:
12352103
PubChem Substance ID:
NACRES:
NA.23
Assay:
>98% (HPLC)
Form:
solid
assay
>98% (HPLC)
form
solid
SMILES string
C12=NSN=C1C(C=CC3=NSN=C34)=C4C=C2
InChI
1S/C10H4N4S2/c1-3-7-10(14-15-11-7)6-2-4-8-9(5(1)6)13-16-12-8/h1-4H
InChI key
VHHDKHOBNKXVNU-UHFFFAOYSA-N
Application
NTz contains two fused 1, 2, 5-thiadiazole rings that lower the band gap; enhance the interchain packing; and improve the charge mobility of the resulting polymer. The NT-based polymer PBDT-DTNT exhibited considerably better photovoltaic performance with a power conversion efficiency (PCE) of 6.00% .
signalword
Warning
hcodes
pcodes
Hazard Classifications
Acute Tox. 4 Oral
Storage Class
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Ming Wang et al.
Journal of the American Chemical Society, 133(25), 9638-9641 (2011-06-03)
Donor-acceptor conjugated polymers PBDT-DTBT and PBDT-DTNT, based on 2,1,3-benzothiadiazole (BT) and naphtho[1,2-c:5,6-c]bis[1,2,5]thiadiazole (NT), have been designed and synthesized for polymer solar cells. NT contains two fused 1,2,5-thiadiazole rings that lower the band gap, enhance the interchain packing, and improve the
Global Trade Item Number
| SKU | GTIN |
|---|---|
| 795372-250MG | 04061832988924 |
