900442

Graphene/PEDOT:PSS hybrid ink

dispersion in DMF, avg. no. of layers, 1 ‑ 3

Synonym(s):

Conductive ink, Electrochemically exfoliated graphene ink, G/PEDOT:PSS, Graphene ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

NACRES:
NA.23
UNSPSC Code:
12352401
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Electrodes

Quality Level

100

form

dispersion (in DMF)

feature

avg. no. of layers 1 ‑ 3

concentration

0.2 mg/mL (PEDOT:PSS), 1 mg/mL (electrochemically exfoliated graphene)

sheet resistance

500 Ω/sq, 20 nm film: 80% transmittance

General description

  • Graphene preparation method: Electrochemical exfoliation.
  • Graphene thickness by AFM: 80%, 1-3 layers.
  • Sheet size by AFM: 10 μm.
  • Oxygen content: 7.5% (by XPS) (C/O-ratio: 12.3).
  • Raman I_D/I_G ratio: 0.4.
  • Sheet resistance: 4.8 kΩ/sq.

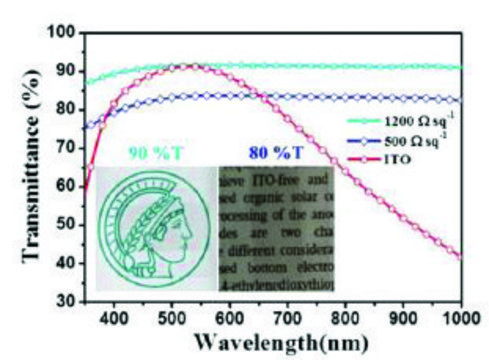

  • Typical properties of films produced thereof (after spray coating):
a) 11 nm film: 90% transmittance, 1200 Ω/sq (as made).
b) 20 nm film: 80% transmittance, 500 Ω/sq (as made).

signalword

Danger

Hazard Classifications

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Liq. 3 - Repr. 1B

Storage Class

3 - Flammable liquids

wgk

WGK 2

flash_point_f

136.4 °F

flash_point_c

58 °C

Regulatory Information

危险化学品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCM1327
MKCQ1509
MKCN8877
MKCJ4820
MKCF8325

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

Substrate and Conductor Materials Towards More Sustainable Electronics

The European Green Deal and Circular Economy Action Plan address resource challenges with eco-products and circulatory work, while the revised EU Ecodesign Directive promotes e-waste reduction and natural resource value reform. This review examines renewable substrates and conductive materials for flexible electronics.

Self healable PEDOT based film hydrogel and OECT devices

Advancements in bioelectronics, incorporating self-healing materials for wearable devices, and measuring bioelectric signals to assess physiological parameters.

Recent Advances in Scalable Synthesis and Processing of Two-Dimensional Materials

Advances in scalable synthesis and processing of two-dimensional materials

View All Articles
Peng You et al.
Advanced materials (Deerfield Beach, Fla.), 27(24), 3632-3638 (2015-05-15)
Semitransparent perovskite solar cells are prepared by laminating graphene transparent electrodes on the top for the first time. The device performance is optimized by improving the conductivity of the graphene electrodes and the contact between the graphene and the perovskite
Transparent graphene/PEDOT-PSS composite films as counter electrodes of dye-sensitized solar cells.
Hong, et al.
Electrochemical Communications, 10(10), 1555-1558 (2008)
Zhaoyang Liu et al.
Advanced materials (Deerfield Beach, Fla.), 27(4), 669-675 (2014-12-03)
A novel solution fabrication of large-area, highly conductive graphene films by spray-coating of a hybrid ink of exfoliated graphene (EG)/poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) (PEDOT:PSS) (PH1000) is demonstrated. The fabricated graphene films exhibit excellent mechanical properties, thus enabling their application as bottom electrodes in
