900448

Graphene dispersion

greener alternative

≥0.2 mg/mLin DMF, sheet resistance 2 kΩ/sq, avg. no. of layers, 1 ‑ 3

Synonym(s):

Conductive ink, Electrochemically exfoliated graphene ink, Graphene ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
12141908
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Graphene dispersion, ≥0.2 mg/mL in DMF, sheet resistance 2 kΩ/sq, avg. no. of layers, 1 ‑ 3

Quality Level

100

description

Dispersion in DMF, Electrodes

form

dispersion

feature

avg. no. of layers 1 ‑ 3

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

concentration

≥0.2 mg/mL (electrochemically exfoliated graphene), ≥0.2 mg/mL in DMF

greener alternative category

Enabling,

General description

  • Graphene preparation method: electrochemical exfoliation.
  • Graphene thickness by AFM: ∼80% 1-3 layers.
  • Sheet size by AFM: 5-10 μm.
  • Oxygen content: 5.5 at.% (C/O-ratio: 17.2).
  • Raman I_D/I_G ratio: 0.25.
  • Sheet resistance: 2 kΩ/sq.
  • Typical properties of films produced thereof (after dilution to 0.1 mg/mL and dry transfer from PTFE-filter):

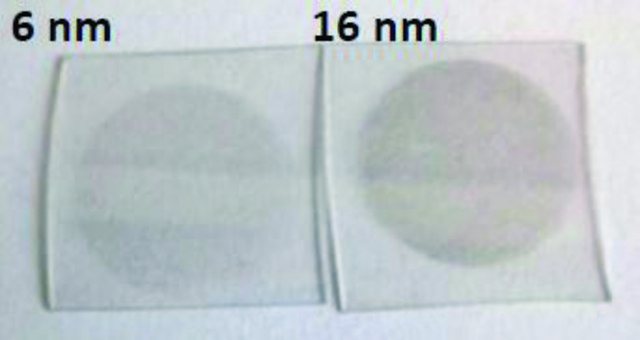

6 nm film: 91% transmittance, sheet resistance of 24.2 kΩ/sq (as made), 7.9 kΩ/sq (after 30 min, 200 °C), <1 kΩ/sq (conc. HNO3-treatment).
16 nm film: 73% transmittance, sheet resistance of 7.6 kΩ/sq (as made), 1.8 kΩ/sq (after 30 min, 200 °C), <500 Ω/sq (conc. HNO3-treatment).
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Graphene inks are highly conductive, low cost and super flexible. Click here for more information.

Still not finding the right product?

Explore all of our products under Graphene dispersion

signalword

Danger

Hazard Classifications

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Liq. 3 - Repr. 1B

Storage Class

3 - Flammable liquids

wgk

WGK 2

flash_point_f

131.0 °F

flash_point_c

55 °C
