901111

Phenox O-PC™ A0202

≥97%, powder or crystals, New Iridium

Synonym(s):

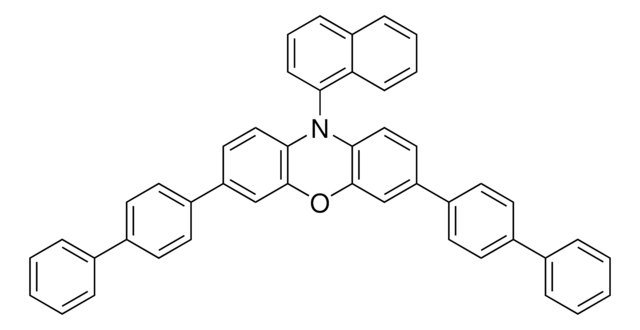

3,7-Di([1,1′-biphenyl]-4-yl)-10-(naphthalen-1-yl)-10H-phenoxazine, Miyake organophotoredox catalyst, 3,7-Di(4-biphenyl) 1-naphthalene-10-phenoxazine, PhenO_1Naph_Biph

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C46H31NO
CAS Number:
1987900-95-7
Molecular Weight:
613.74
MDL number:
MFCD31619181
UNSPSC Code:
12161600
NACRES:
NA.22
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Phenox O-PC™ A0202, New Iridium, ≥97%

Quality Level

100

assay

≥97%

form

powder or crystals

reaction suitability

reagent type: catalyst
reaction type: Photocatalysis

mp

171 °C

photocatalyst activation

400 nm

SMILES string

C1(C=CC(C2=CC=C(C3=CC=CC=C3)C=C2)=C4)=C4OC(C=C(C5=CC=C(C6=CC=CC=C6)C=C5)C=C7)=C7N1C8=C(C=CC=C9)C9=CC=C8

InChI

1S/C46H31NO/c1-3-10-32(11-4-1)34-18-22-36(23-19-34)39-26-28-43-45(30-39)48-46-31-40(37-24-20-35(21-25-37)33-12-5-2-6-13-33)27-29-44(46)47(43)42-17-9-15-38-14-7-8-16-41(38)42/h1-31H

InChI key

IGGSSEOAGCUGDJ-UHFFFAOYSA-N

Application

This phenoxazine-based organic photoredox catalyst (in addition to the dihydrophenazine catalyst 901112) was designed to be a strong excited-state reductant and possesses advanced photophysical and electrochemical properties, enabling it to serve as a sustainable replacement for ruthenium- or iridium-based photoredox catalysts. For example, dihydrophenazine and phenoxazine derivatives were demonstrated to replace ruthenium or iridium complexes in the application of photoredox-catalyzed atom transfer radical polymerization (ATRP) for controlled polymer synthesis and small molecule transformations such as trifluoromethylation, atom transfer radical addition, and dual Nickel/photoredox catalyzed C-N and C-S cross-couplings. Dihydrophenazine- and phenoxazine-based organic photoredox catalysts were introduced in collaboration with the Miyake Research Group.

Product can be used with our line of photoreactors: Including Penn PhD (Z744035) & SynLED 2.0 (Z744080)

Other Notes

Strongly Reducing Visible Light Organic Photoredox Catalysts as Sustainable Alternatives to Precious Metals

Organocatalyzed Atom Transfer Radical Polymerization Driven by Visible Light

Organocatalyzed Atom Transfer Radical Polymerization Using N-Aryl Phenoxazines as Photoredox Catalysts

Intramolecular Charge Transfer and Ion Pairing in N,N-Diaryl Dihydrophenazine Photoredox Catalysts for Efficient Organocatalyzed Atom Transfer Radical Polymerization

Legal Information

Patent application PCT/US2016/058245. Sold in collaboration with New Iridium Inc. For orders greater than 25g, please contact New Iridium at chern@newiridium.com or visit https://www.newiridium.com.
Phenox O-PC is a trademark of New Iridium LLC

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKCP0665
MKCF3373
MKCL5675

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

Reducing Organic Photoredox Catalysts for Visible Light-Driven Polymer and Small Molecule Synthesis

Photoredox catalysis is a powerful synthetic methodology to form challenging covalent bonds using light irradiation. It is effective for light-driven polymer and small molecule synthesis.

Related Content

Miyake Group – Professor Product Portal

Research in the Miyake laboratory focuses on catalysis, polymer chemistry, and materials science.

Organocatalyzed Atom Transfer Radical Polymerization Using N-Aryl Phenoxazines as Photoredox Catalysts.
Pearson, et al.
Journal of the American Chemical Society, 138, 11399-11407 (2017)
Ryan M Pearson et al.
Journal of the American Chemical Society, 138(35), 11399-11407 (2016-08-25)
N-Aryl phenoxazines have been synthesized and introduced as strongly reducing metal-free photoredox catalysts in organocatalyzed atom transfer radical polymerization for the synthesis of well-defined polymers. Experiments confirmed quantum chemical predictions that, like their dihydrophenazine analogs, the photoexcited states of phenoxazine
Chern-Hooi Lim et al.
Journal of the American Chemical Society, 139(1), 348-355 (2016-12-16)
Photoexcited intramolecular charge transfer (CT) states in N,N-diaryl dihydrophenazine photoredox catalysts are accessed through catalyst design and investigated through combined experimental studies and density functional theory (DFT) calculations. These CT states are reminiscent of the metal to ligand charge transfer
View All Related Papers

Global Trade Item Number

SKUGTIN
901111-100MG04061833259481
901111-1G04061841290704
