906387

ITIC-Cl

Synonym(s):

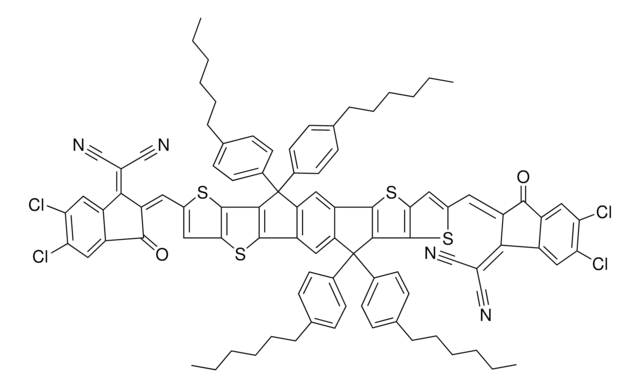

3,9-bis(2-methylene-((3-(1,1-dicyanomethylene)-6,7-dichloro)-indanone))-5,5,11,11-tetrakis(4-hexylphenyl)-dithieno[2,3-d:2′,3′-d′]-s-indaceno[1,2-b:5,6-b′]dithiophene, ITIC-2Cl

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C94H78Cl4N4O2S4
CAS Number:
2253663-81-7
Molecular Weight:
1565.72
MDL number:
MFCD32672255
UNSPSC Code:
12352101
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

description

Band gap: 1.48 eV

assay

98%

form

powder

orbital energy

HOMO -5.68 eV , LUMO -4.20 eV

SMILES string

[s]1c2c([s]c(c2)\C=C%14/C(=O)c%15c(cc(c(c%15)Cl)Cl)C/%14=C(C#N)C#N)c3c1c4c(cc7c(c4)C(c%10c%11[s]c(cc%11[s]c%107)\C=C%12\C(=O)c%13c(cc(c(c%13)Cl)Cl)C\%12=C(C#N)C#N)(c9ccc(cc9)CCCCCC)c8ccc(cc8)CCCCCC)C3(c6ccc(cc6)CCCCCC)c5ccc(cc5)CCCCCC

InChI

1S/C94H78Cl4N4O2S4/c1-5-9-13-17-21-55-25-33-61(34-26-55)93(62-35-27-56(28-36-62)22-18-14-10-6-2)75-45-72-76(46-71(75)89-85(93)91-81(107-89)43-65(105-91)41-73-83(59(51-99)52-100)67-47-77(95)79(97)49-69(67)87(73)103)94(63-37-29-57(30-38-63)23-19-15-11-7-3,6

InChI key

CGRWDQBQNINDAH-WJLAHIJSSA-N

General description

ITCI-CI is a low band acceptor-donor-acceptor molecule with indacenodithieno[3,2‐b]thiophene (IT) as a central donor atom and 2‐(3‐oxo‐2,3‐dihydroinden‐1‐ylidene)malononitrile (IC) as an acceptor end group. It is also a non-fullerene electron acceptor with a push-pull structure that induces an intramolecular charge transfer and extends absorption.

Application

ITCI-CI can be mainly used in the fabrication of polymeric solar cells with an efficiency that is less than 11% and excellent thermal stability.
ITIC-Cl is a novel non-fullerene acceptor material designed to use in organic photovoltaic devices.ITIC-Cl is a derivative of the ITIC molecule, which is increasingly used to replace fullerene based derivatives for organic solar cells due to significantly improved performances and stability.Compared to ITIC and its other derivatives such as ITIC-F, ITIC-Cl has a narrower bandgap and lower energy levels, and thus will be more suitable to pair with various p-type polymers.ITIC-Cl is readily soluble in most organic solvents used to fabricate organic electronic devices.

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

It looks like we've run into a problem, but you can still download Certificates of Analysis from our Documents section.

If you need assistance, please contact Customer Support

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

Progress for High Performance Tandem Organic Solar Cells

Professor Chen (Nankai University, China) and his team explain the strategies behind their recent record-breaking organic solar cells, reaching a power conversion efficiency of 17.3%.

Wenchao Zhao et al.
Advanced materials (Deerfield Beach, Fla.), 28(23), 4734-4739 (2016-04-12)
A nonfullerene-based polymer solar cell (PSC) that significantly outperforms fullerene-based PSCs with respect to the power-conversion efficiency is demonstrated for the first time. An efficiency of >11%, which is among the top values in the PSC field, and excellent thermal
Liang Gao et al.
Advanced materials (Deerfield Beach, Fla.), 28(37), 8288-8295 (2016-07-09)
A nonfullerene polymer solar cell with a high efficiency of 9.26% is realized by using benzodithiophene-alt-fluorobenzotriazole copolymer J51 as a medium-bandgap polymer donor and the low-bandgap organic semiconductor ITIC with high extinction coefficients as the acceptor.
A tetrachlorinated molecular non-fullerene acceptor for high performance near-IR absorbing organic solar cells
Laventure A and Welch GC
Journal of Material Chemistry C, 6(34), 9060-9064 (2018)
View All Related Papers

Global Trade Item Number

SKUGTIN
906387-100MG04054839936722
