907340

H-L-Photo-Phe-OH

≥98%

Synonym(s):

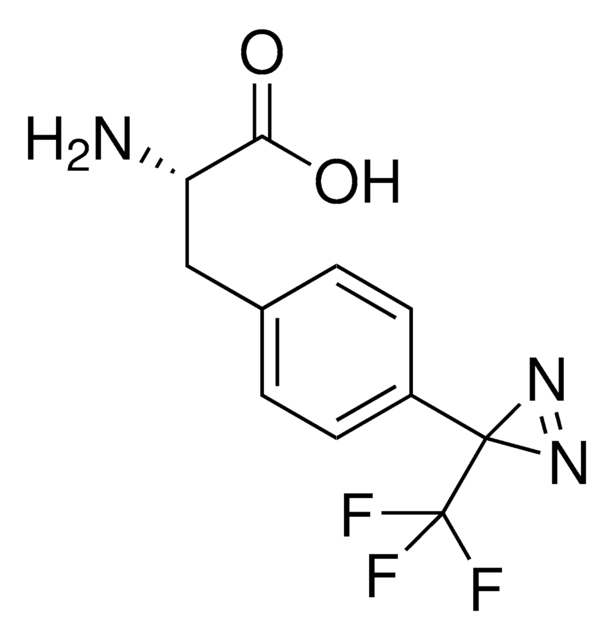

(S)-2-Amino-3-(4-(3-(trifluoromethyl)-3H-diazirin-3-yl)phenyl)propanoic acid, 4-(Trifluoromethyldiazirin)-L-phenylalanine, Diazirine amino acid, H-Tdf-OH, Photo-Phe, Photo-crosslinking amino acid, Photoprobe building block

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C11H10F3N3O2
CAS Number:
92367-16-3
Molecular Weight:
273.21
UNSPSC Code:
12352101
MDL number:
MFCD30187606
NACRES:
NA.26
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

assay

≥98%

form

powder

reaction suitability

reaction type: solution phase peptide synthesis

availability

available only in USA

application(s)

peptide synthesis

storage temp.

−20°C

SMILES string

FC(F)(F)C2(N=N2)c1ccc(cc1)CC(N)C(=O)O

InChI

1S/C11H10F3N3O2/c12-11(13,14)10(16-17-10)7-3-1-6(2-4-7)5-8(15)9(18)19/h1-4,8H,5,15H2,(H,18,19)

InChI key

HRGXDARRSCSGOG-UHFFFAOYSA-N

Application

H-L-Photo-Phe-OH is a diazirine-containing phenylalanine amino acid and multifunctional
photo-crosslinker. Its incorporation into peptides or small-molecule probes and tools allows for photoaffinity labeling of cellular targets and protein-protein interactions upon UV light (∼360 nm) irradiation to form a covalent bond. This and other multifunctional probe building blocks will continue to accelerate drug discovery research for probing cellular mechanisms, target ID/validation, and understanding traditionally undruggable targets. An Fmoc-protected version is also available as 907294.

Product can be used with our line of photoreactors: Including Penn PhD (Z744035) & SynLED 2.0 (Z744080)

Other Notes

Genetic Incorporation of a Photo-Crosslinkable Amino Acid Reveals Novel Protein Complexes with GRB2 in Mammalian Cells

Trifluoromethyldiazirine: an effective photo-induced cross-linking probe for exploring amyloid formation

A genetically encoded diazirine photo-crosslinker in Escherichia coli

Fishing for Drug Targets: A Focus on Diazirine Photoaffinity Probe Synthesis

Photo-affinity labeling (PAL) in chemical proteomics: a handy tool to investigate protein-protein interactions (PPIs)

pictograms

Flame
GHS02

signalword

Danger

hcodes

H242

Hazard Classifications

Self-react. C

Storage Class

5.2 - Organic peroxides and self-reacting hazardous materials

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Regulatory Information

新产品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

It looks like we've run into a problem, but you can still download Certificates of Analysis from our Documents section.

If you need assistance, please contact Customer Support

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

A genetically encoded diazirine photocrosslinker in Escherichia coli.
Eric M Tippmann et al.
Chembiochem : a European journal of chemical biology, 8(18), 2210-2214 (2007-11-15)
Lei Wang et al.
Organic letters, 17(3), 616-619 (2015-01-15)
Alternative one-pot synthesis of 3-(trifluoromethyl)-3-phenyldiazirine derivatives from corresponding tosyloximes is developed. The deprotonation of intermediate diaziridine by NH2(-) is a new approach for construction of diazirine. Moreover, a novel synthesis of optically pure (trifluoromethyl)diazirinylphenylalanine derivatives was attempted involving these methods.
G Baldini et al.
Biochemistry, 27(20), 7951-7959 (1988-10-04)
The Boc-protected derivative of a photoactivatable, carbene-generating analogue of phenylalanine, L-4'-[3-(trifluoromethyl)-3H-diazirin-3-yl]phenylalanine [(Tmd)Phe], was used to acylate 5'-O-phosphorylcytidylyl(3'-5')adenosine (pCpA). A diacyl species was isolated which upon successive treatments with trifluoroacetic acid and 0.01 M HCl yielded a 1:1 mixture of 2'(3')-O-(Tmd)phenylalanyl-pCpA
