PCC030C05

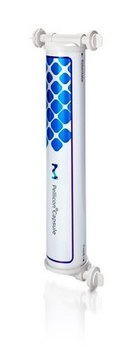

Pellicon® Capsule with Ultracel® Membrane
pore size 30 kDa, C Screen, filtration area 0.5 m²
Synonym(s):
Pellicon® Capsule with Ultracel® Membrane
Select a Size
About This Item
Product Name
Pellicon® Capsule 0.5 m2 Ultracel® 30 kDa C Screen, Feed: 3/4" Sanitary Flange Retentate: 3/4" Sanitary Flange Permeate: 3/4" Sanitary Flange
Quality Level
material
EPDM rubber seal, PPO/PS blend (core), PPO/PS blend housing, TPE seal, composite regenerated cellulose (CRC) membrane, epoxy adhesive, polyester screen, polypropylene screen, polyurethane adhesive
sterility
sterile; γ-irradiated
product line
Pellicon®
storage condition
room temperature (15-30°C)
parameter
4-8 L/min-m2 flow rate (feed), 50 psi max. transmembrane pressure (3.5 bar) at 4-30 °C (forward), 80 psi max. inlet pressure (5.5 bar) at 4-30 °C
technique(s)
ultrafiltration: suitable
L
35.3 cm (13.9 in.)
diam.
5.7 cm (2.3 in.)
filtration area
0.5 m2
screen size
, Type C screen (coarse screen)
volume
107 mL , in feed channel, 143 mL , in permeate channel
impurities
≤5 ppm Meets TOC (in retentate effluent, after a WFI flush of 20 L/m2)
matrix
Ultracel®
pore size
30 kDa
pH
2-13
fitting
3/4 in. inlet/outlet sanitary flange (feed), 3/4 in. inlet/outlet sanitary flange (permeate), 3/4 in. inlet/outlet sanitary flange (retentate)
General description
Application
Features and Benefits
Gamma sterilized and preseravtive-free - ready to process in minutes
True single-use, self-contained capusle - fast, safe, and flexible batch turnaround
Proven Ultracel® membrane and C screen - high recovery, superior mass transfer, solvent resistance
Pellicon® TFF proven performance - true linear scalability within Pellicon® TFF families
Packaging
Other Notes
Comprehensive documentation to support qualification, risk assessment and process optimization needs.
Consolidation of product specific testing, quality and regulatory information to simplify compliance requirements.
Convenient 24/7 access to up-to-date product information.
