901767

PC biotin-PEG3-NHS ester

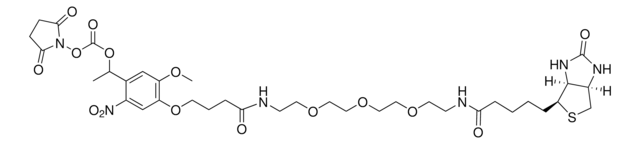

Name: PC biotin-PEG3-NHS ester
Brand: SIAL

Synonym(s):

PC biotin-NHS ester

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):

C₃₆H₅₂N₆O₁₅S

CAS Number:

2353409-93-3

Molecular Weight:

840.89

MDL number:

MFCD31811520

UNSPSC Code:

51171641

NACRES:

NA.22

Form:

solid

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

form

solid

reaction suitability

reaction type: click chemistry, reagent type: cross-linking reagent

mp

170 °C

storage temp.

−20°C

SMILES string

S1[C@H]([C@H]4NC(=O)N[C@H]4C1)CCCCC(=O)NCCOCCOCCOCCNC(=O)CCCOc2c(cc(c(c2)[N+](=O)[O-])C(OC(=O)ON3C(=O)CCC3=O)C)OC

InChI

1S/C36H52N6O15S/c1-23(56-36(48)57-41-32(45)9-10-33(41)46)24-20-27(51-2)28(21-26(24)42(49)50)55-13-5-8-31(44)38-12-15-53-17-19-54-18-16-52-14-11-37-30(43)7-4-3-6-29-34-25(22-58-29)39-35(47)40-34/h20-21,23,25,29,34H,3-19,22H2,1-2H3,(H,37,43)(H,38,44)(H2,39,

InChI key

WXAMRLAFOFNACR-VTJXTUSFSA-N

Description

Application

PC biotin-NHS ester is a unique amine-reactive, photocleavable biotin reagent that allows for reagent-free release of the captured biomolecules from streptavidin. This reagent contains a biotin moiety linked to the amine reactive N-hydroxysuccinimidyl (NHS) mixed carbonate through a spacer arm containing a photocleavable moiety. The NHS portion of this compound reacts specifically with primary amine groups on the target molecule(s) to form a carbamate linkage. Captured biomolecules can be efficiently photoreleased, typically >90% in 5-25 minutes using an inexpensive, near-UV, low intensity lamp (e.g. 365 nm lamp at 1-5 mW/cm²).

Automate your Biotin tagging with Synple Automated Synthesis Platform (SYNPLE-SC002)

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

MKCQ1420

MKCL9445

MKCG8751

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Articles

交联剂选择指南

为您的生化或生物共轭研究选择合适的交联剂可能具有挑战性。我们的选择指南可以帮助您找到最适合您应用的交联剂。

Crosslinkers Selection Guide

Choosing the right crosslinker for your biochemical or bioconjugation research can be challenging. Our selection guide can help you find the perfect match for your applications.

Global Trade Item Number

SKU	GTIN
901767-25MG	04061838634276
