31185
D.E.R.™ 332
used as embedding medium
Synonym(s):

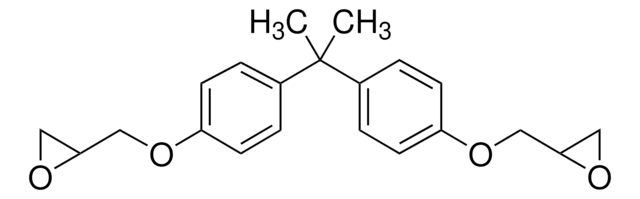

Bisphenol A diglycidyl ether, Epoxy-Resin, 2,2-Bis[4-(glycidyloxy)phenyl]propane, 4,4′-Isopropylidenediphenol diglycidyl ether, BADGE, D.E.R.™ 332
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
Empirical Formula (Hill Notation):
C21H24O4
CAS Number:
Molecular Weight:
340.41
UNSPSC Code:
12161502
NACRES:
NA.25
PubChem Substance ID:
EC Number:
216-823-5
Beilstein/REAXYS Number:
299026
MDL number:
Quality level:
Quality Level
SMILES string
CC(C)(c1ccc(OCC2CO2)cc1)c3ccc(OCC4CO4)cc3
InChI
1S/C21H24O4/c1-21(2,15-3-7-17(8-4-15)22-11-19-13-24-19)16-5-9-18(10-6-16)23-12-20-14-25-20/h3-10,19-20H,11-14H2,1-2H3
InChI key
LCFVJGUPQDGYKZ-UHFFFAOYSA-N
Application
The uniqueness of D.E.R. 332 epoxy resin is reflected in its maximum epoxide equivalent weight of 178. Because of its high purity and lack of polymer factions, samples embedded using D.E.R. 322 have uniform performance, exceptionally low viscosity and color; and improved elevated temperature properties.
Legal Information
D.E.R. is a trademark of The Dow Chemical Company or an affiliated company of Dow
Disclaimer
Crystallizes very slowly at room-temperature; can be melted by heating up to 50-55 °C
signalword
Warning
hcodes
Hazard Classifications
Aquatic Chronic 2 - Eye Irrit. 2 - Skin Irrit. 2 - Skin Sens. 1
Storage Class
10 - Combustible liquids
wgk
WGK 1
flash_point_f
507.2 - 514.4 °F - closed cup
flash_point_c
264 - 268 °C - closed cup
ppe
dust mask type N95 (US), Eyeshields, Faceshields, Gloves
