D8130

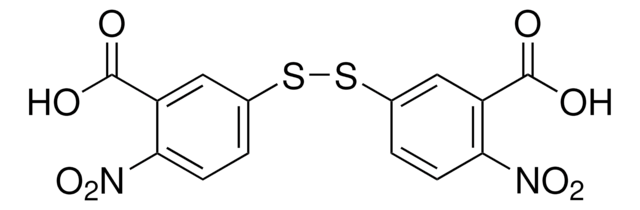

5,5′-Dithiobis(2-nitrobenzoic acid)

Name: 5,5′-Dithiobis(2-nitrobenzoic acid)
Brand: SIGMA

≥98%, BioReagent, suitable for determination of sulfhydryl groups

Synonym(s):

3-Carboxy-4-nitrophenyl disulfide, 6,6′-Dinitro-3,3′-dithiodibenzoic acid, Bis(3-carboxy-4-nitrophenyl) disulfide, DTNB, Ellman’s Reagent

Select a Size

Change View

About This Item

Linear Formula:

[-SC₆H₃(NO₂)CO₂H]₂

CAS Number:

69-78-3

Molecular Weight:

396.35

UNSPSC Code:

12352106

NACRES:

NA.26

PubChem Substance ID:

24894189

EC Number:

200-714-4

Beilstein/REAXYS Number:

1896821

MDL number:

MFCD00007140

Assay:

≥98%

Form:

powder

Technical Service

Need help? Our team of experienced scientists is here for you.

Let Us Assist

Properties

product line

BioReagent

Quality Level

200

assay

≥98%

form

powder

mp

240-245 °C (dec.) (lit.)

suitability

suitable for determination of sulfhydryl groups

SMILES string

OC(=O)c1cc(SSc2ccc(c(c2)C(O)=O)[N+]([O-])=O)ccc1[N+]([O-])=O

InChI

1S/C14H8N2O8S2/c17-13(18)9-5-7(1-3-11(9)15(21)22)25-26-8-2-4-12(16(23)24)10(6-8)14(19)20/h1-6H,(H,17,18)(H,19,20)

InChI key

KIUMMUBSPKGMOY-UHFFFAOYSA-N

Description

General description

5,5′-Dithiobis(2-nitrobenzoic acid) is also called DTNB or Ellman′s reagent. It is a water soluble reagent, which interacts with thiol groups, and can be used conveniently at neutral pH. Thiolate anion (RS^-) reacts with Ellman′s reagent (DTNB^2-), to produce 2-nitro-5-thiobenzoate anion (TNB^2-) and one mixed disulfide (R-S-TNB^-). TNB^2- has a high molar absorption coefficient, and absorbs at 412nm. This absorption is independent of pH, at pH> 7.3.

Application

Ellman′s reagent maybe used for acetylcholinesterase assay, and to specifically label cysteine residues. It is a sensitive reagent for measuring the free sulfhydryl content in proteins, peptides, and tissues.

Still not finding the right product?

Explore all of our products under 5,5′-Dithiobis(2-nitrobenzoic acid)

Storage Class

11 - Combustible Solids

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Gloves

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Protocols

Enzymatic Assay of Chloramphenicol Acetyltransferase

To measure chloramphenicol acetyltransferase activity, this procedure uses DTNB and coenzyme A. The reaction of DTNB with the –SH group on CoA results in a colorimetric increase at 412 nm.

Global Trade Item Number

SKU	GTIN
D8130-10G	04061835544141
D8130-150MG	04061833412954
D8130-4MG	04061833690154
D8130-50MG	04061833690161
D8130-100G	04061835544134
D8130-1G	04061835544158
D8130-25G	04061835544165
D8130-500MG	04061835544172
D8130-5G	04061835544189
D8130-8MG	04061833460979
