66923-U

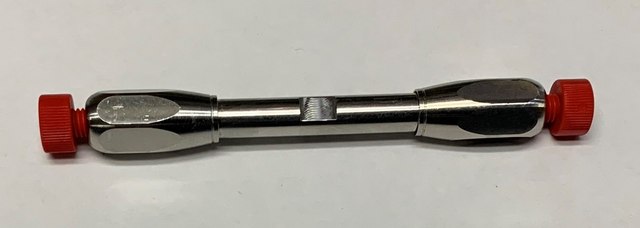

BIOshell™ A160 Peptide C18 (2.7 μm) HPLC Columns

L × I.D. 5 cm × 1.5 mm, HPLC Column

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
41115709
NACRES:
SB.52
L × i.d.:
5 cm × 1.5 mm
Particle size:
2.7 μm
Matrix active group:
C18 (octadecyl) bonding phase, diisobutyloctadecyl
Pore size:
160 Å
Matrix:
spherical silica particle platform, superficially porous particle
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

BIOshell™ A160 Peptide C18, 2.7 μm HPLC Column, L × I.D. 5 cm × 1.5 mm, 2.7 μm particle size

material

stainless steel hardware

Quality Level

100

agency

suitable for USP L1

description

Shell thickness (0.5 μm), Solid Core (1.7 μm)

product line

BIOshell™

feature

endcapped: no

analyte chemical class(es)

peptides

manufacturer/tradename

BIOshell™

packaging

1 ea of

extent of labeling

4.6% carbon loading

parameter

600 bar max. pressure, 90 °C max. temp.

technique(s)

HPLC: suitable, LC/MS: suitable, UHPLC-MS: suitable, UHPLC: suitable

L × I.D.

5 cm × 1.5 mm

surface area

90 m2/g

surface coverage

2.2 μmol/m2

matrix

spherical silica particle platform, superficially porous particle

matrix active group

C18 (octadecyl) bonding phase, diisobutyloctadecyl

particle size

2.7 μm

pore size

160 Å

operating pH range

1-8

separation technique

reversed phase

General description

BIOshell™ 160 Å Peptide C18 columns are specifically engineered to provide efficient separation of peptides as well as small proteins. These columns contain advanced Fused-Core particles with pores strategically sized to 160 Å to enable optimized peptide diffusion. This attribute makes these columns an excellent choice for peptide mapping. Additionally, the sterically-protected C18 ligands provide extra stability allowing the columns to be used at an extended pH range (2-9) and high temperatures (up to 90 °C). This greatly expands the application range for the separation of biomolecules.

Application

UHPLC Analysis of Peptides on BIOshell™ A160 Peptide C18, CN, and Phenyl-Hexyl, 2.7 μm
