757136

Lithium bis(oxalato)borate

greener alternative

Synonym(s):

LiBOB, Lithium bis(ethanedioato)borate, Lithium bis(oxalate)borate

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

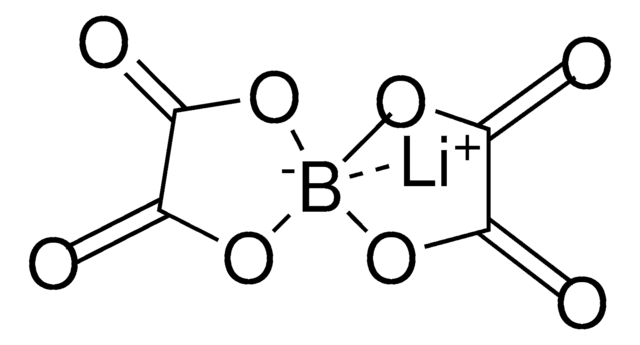

Linear Formula:
LiB(C2O4)2
CAS Number:
244761-29-3
Molecular Weight:
193.79
NACRES:
NA.23
PubChem Substance ID:
329766649
UNSPSC Code:
26111700
MDL number:
MFCD07776904
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

form

powder or crystals

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

mp

>300 °C (lit.)

application(s)

battery manufacturing

greener alternative category

Enabling,

SMILES string

[Li+].O=C1O[B-]2(OC1=O)OC(=O)C(=O)O2

InChI

1S/C4BO8.Li/c6-1-2(7)11-5(10-1)12-3(8)4(9)13-5;/q-1;+1

InChI key

NVQAYVUCVASGDK-UHFFFAOYSA-N

General description

Lithium bis(oxalato)borate (LiBOB) is a class of electrolytic materials that can be used in the fabrication of lithium-ion batteries. Lithium-ion batteries consist of anode, cathode, and electrolyte with a charge-discharge cycle. These materials enable the formation of greener and sustainable batteries for electrical energy storage.
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product has been enhanced for energy efficiency. Find details here.

Application

LiBOB is a thermally stable electrolyte that can be used to protect graphite-based anode materials in lithium-ion batteries. It shows good electrochemical performance with a discharge capacity retention of ~ 83%.
LiBOB is a novel boron based Li salt electrolyte material for Li ion batteries. It is environmentally friendly with good film forming property and high thermal stability and is compatible with a variety of anodes and metal oxide cathode.

pictograms

CorrosionExclamation mark
GHS05,GHS07

signalword

Danger

Hazard Classifications

Acute Tox. 4 Oral - Eye Dam. 1 - Skin Sens. 1A

Storage Class

13 - Non Combustible Solids

wgk

WGK 1
