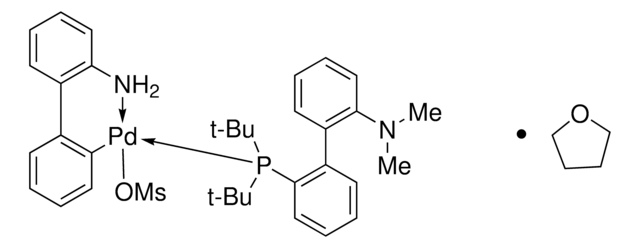

903701

tBuDavePhos Pd G3

powder or crystals, 1:1 THF adduct

Synonym(s):

t-BuDavePhos G3 Palladacycle, t-BuDavePhos Palladacycle

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Linear Formula:
C35H45N2O3PPdS · C4H8O
UNSPSC Code:
12161600
NACRES:
NA.22
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

tBuDavePhos Pd G3, 1:1 THF adduct

product line

Buchwald precatalyst Generation 3

form

powder or crystals

feature

generation 3

reaction suitability

core: palladium, reaction type: Buchwald-Hartwig Cross Coupling Reaction, reaction type: Heck Reaction, reaction type: Hiyama Coupling, reaction type: Negishi Coupling, reaction type: Sonogashira Coupling, reaction type: Stille Coupling, reaction type: Suzuki-Miyaura Coupling, reagent type: catalyst
reaction type: Cross Couplings

functional group

phosphine

SMILES string

CN(C1=C(C2=C(P(C(C)(C)C)C(C)(C)C)C=CC=C2)C=CC=C1)C.NC3=C(C4=C([Pd]OS(C)(=O)=O)C=CC=C4)C=CC=C3.C5COCC5

InChI

1S/C22H32NP.C12H10N.C4H8O.CH4O3S.Pd/c1-21(2,3)24(22(4,5)6)20-16-12-10-14-18(20)17-13-9-11-15-19(17)23(7)8;13-12-9-5-4-8-11(12)10-6-2-1-3-7-10;1-2-4-5-3-1;1-5(2,3)4;/h9-16H,1-8H3;1-6,8-9H,13H2;1-4H2;1H3,(H,2,3,4);/q;;;;+1/p-1

InChI key

PJRGOORCHKDNHB-UHFFFAOYSA-M

General description

tBuDavePhos Pd G3 is a third generation (G3) Buchwald precatalyst. It is air, moisture and thermally-stable and is highly soluble in a wide range of common organic solvents. It has a long life in solutions. tBuDavePhos Pd G3 is an excellent reagent for palladium catalyzed cross-coupling reactions. Some of its unique features include lower catalyst loadings, shorter reaction time, efficient formation of the active catalytic species and accurate control of ligand: palladium ratio.

Application

tBuDavePhos Pd G3 has been used as a precatalyst for the Synthesis of Aryl Sulfonamides via Palladium-Catalyzed Chlorosulfonylation of Arylboronic Acids. It may also be used for a variety of C-C and C-N cross-coupling reactions.

Other Notes

Technology Spotlight: G3 and G4 Buchwald Precatalysts

Synthesis of Aryl Sulfonamides via Palladium-Catalyzed Chlorosulfonylation of Arylboronic Acids

Design and preparation of new palladium precatalysts for C-C and C-N cross-coupling reactions

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

Regulatory Information

新产品

This item has

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
SHBK8019

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

J Robb DeBergh et al.
Journal of the American Chemical Society, 135(29), 10638-10641 (2013-07-11)
A palladium-catalyzed method for the preparation of sulfonamides is described. The process exhibits significant functional group tolerance and allows for the preparation of a number of arylsulfonyl chlorides and sulfonamides under mild conditions.
Nicholas C Bruno et al.
Chemical science, 4, 916-920 (2013-05-15)
A series of easily prepared, phosphine-ligated palladium precatalysts based on the 2-aminobiphenyl scaffold have been prepared. The role of the precatalyst-associated labile halide (or pseudohalide) in the formation and stability of the palladacycle has been examined. It was found that
