Micro-Array for Mass Spectrometry (MAMS)
for single cell analysis
Sign In to View Organizational & Contract Pricing.
Select a Size
Change View
About This Item
NACRES:
SB.32
UNSPSC Code:
23151817
surface resistivity
15-25 Ω/sq
technique(s)
MALDI-MS: suitable
L × W × H
75 mm × 25 mm × 1.1 mm
compatibility
for use with Bruker Daltonik MTP Slide Adapter II
General description
- 2x 169 (13x13) spots
- spot diameter: 100 μm
- spot depth: ~40 μm
- pitch: 500 μm

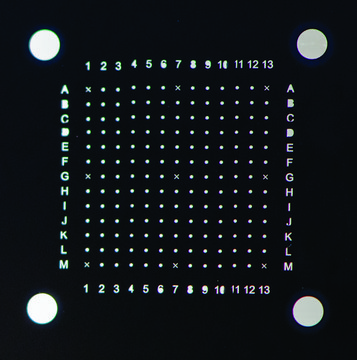

Polysilazane-coated, transparent indium tin oxide target slide, microstructured with an array of 13x13 100 μm diameter spots with a site-to-site distance of 500 μm in both dimensions, produced by picosecond laser ablation. Recipient sites of larger (1.5 mm in diameter) size were machined outside the 13 × 13 array for depositing mass calibrants.
Features and Benefits
MAMS represent a type of substrate for MALDI-MS using a combination of hydrophilic reservoirs surrounded by an omniphobic surface for massively parallel, automated sample spotting. The 13x13 spot array MAMS chip is designed for use in single cell analysis. Cells can easily be distributed in MAMS by pulling a droplet of cell suspension over the microarray surface with a glass slide or piece of plastic resulting in the generation of very reproducible nanoliter aliquots avoiding the need of a robotic microarray spotter.
Still not finding the right product?
Explore all of our products under Micro-Array for Mass Spectrometry (MAMS)
Regulatory Information
监管及禁止进口产品
This item has
Choose from one of the most recent versions:
Already Own This Product?
Find documentation for the products that you have recently purchased in the Document Library.
Carbon-13 labelling strategy for studying the ATP metabolism in individual yeast cells by micro-arrays for mass spectrometry
Urban, P. L: et al.
Molecular Biosystems, 7, 2837-2840 (2011)
Analysis of single algal cells by combining mass spectrometry with Raman and fluorescence mapping
Fagerer, S. R. et al.
Analyst, 138, 6732-6736 (2013)
Single-Cell Metabolomics: Analytical and Biological Perspectives
Zenobi, R.
Science, 342, 1201-1201 (2013)
