906123

(S,R,S)-AHPC-PEG2-butyl amine hydrochloride

Synonym(s):

(2S,4R)-1-((S)-2-(2-(2-((6-Aminohexyl)oxy)ethoxy)acetamido)-3,3-dimethylbutanoyl)-4-hydroxy-N-(4-(4-methylthiazol-5-yl)benzyl)pyrrolidine-2-carboxamide, (S,R,S)-AHPC-2-2-6-NH2 HCl salt, Crosslinker−E3 ligase ligand conjugate, Protein degrader building block for PROTAC® research, Template for synthesis of targeted protein degrader, VH032 conjugate

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C32H49N5O6S · xHCl
Molecular Weight:
631.83 (free base basis)
MDL number:
MFCD32710292
UNSPSC Code:
12352101
NACRES:
NA.22
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

ligand

VH032

Quality Level

100

assay

≥95%

form

solid

reaction suitability

reactivity: carboxyl reactive, reagent type: ligand-linker conjugate

functional group

amine

storage temp.

2-8°C

SMILES string

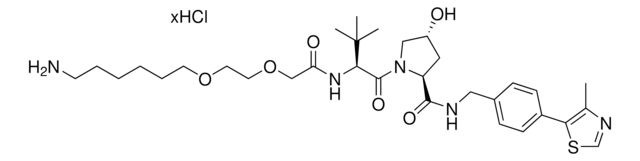

NCCCCCCOCCOCC(N[C@H](C(N1[C@H](C(NCC2=CC=C(C3=C(C)N=CS3)C=C2)=O)C[C@@H](O)C1)=O)C(C)(C)C)=O.Cl

InChI

1S/C32H49N5O6S.ClH/c1-22-28(44-21-35-22)24-11-9-23(10-12-24)18-34-30(40)26-17-25(38)19-37(26)31(41)29(32(2,3)4)36-27(39)20-43-16-15-42-14-8-6-5-7-13-33;/h9-12,21,25-26,29,38H,5-8,13-20,33H2,1-4H3,(H,34,40)(H,36,39);1H/t25-,26+,29-;/m1./s1

InChI key

CWXLKVVDXUDRQV-DDLJGEAHSA-N

General description

Protein degrader builiding block (S,R,S)-AHPC-PEG2-butyl amine (HCl salt) enables the synthesis of molecules for targeted protein degradationand PROTAC (proteolysis-targeting chimeras) technology. This conjugate contains a von Hippel-Lindau (VHL)-recruiting ligand, a linker with both hydrophobic and hydrophilic moieties, and a pendant amine for reactivity with a carboxyl group on the target ligand. Because even slight alterations in ligands and crosslinkers can affect ternary complex formation between the target, E3 ligase, and PROTAC, many analogs are prepared to screen for optimal target degradation. When used with other protein degrader building blocks with a pendant amine, parallel synthesis can be used to more quickly generate PROTAC libraries that feature variation in crosslinker length, composition, and E3 ligase ligand.

Automate your VHL-PEG based PROTACs with Synple Automated Synthesis Platform (SYNPLE-SC002)

Other Notes

Technology Spotlight: Degrader Building Blocks for Targeted Protein Degradation

Portal: Building PROTAC® Degraders for Targeted Protein Degradation

Targeted Protein Degradation by Small Molecules

Small-Molecule PROTACS: New Approaches to Protein Degradation

Targeted Protein Degradation: from Chemical Biology to Drug Discovery

Impact of linker length on the activity of PROTACs

Legal Information

PROTAC is a registered trademark of Arvinas Operations, Inc., and is used under license

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H302,H319

Hazard Classifications

Acute Tox. 4 Oral - Eye Irrit. 2

Storage Class

11 - Combustible Solids

flash_point_f

Not applicable

flash_point_c

Not applicable
